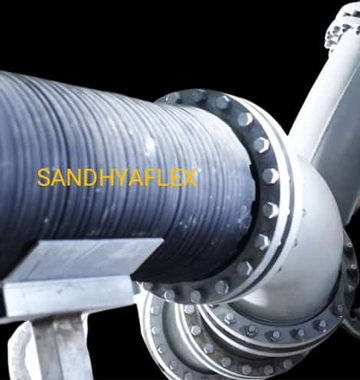

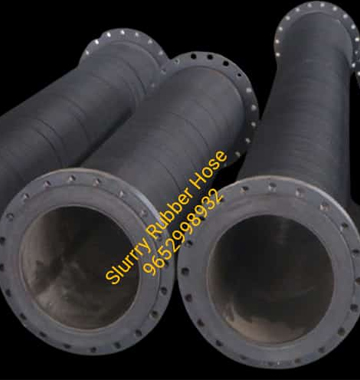

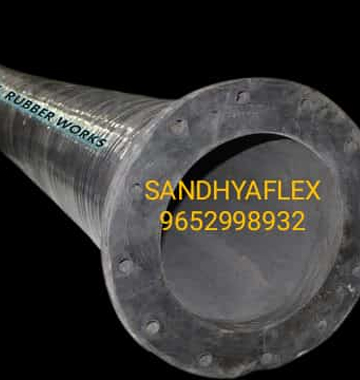

Slurry and Mud Rubber Hose

SLURRY & MUD RUBBER HOSE (HEAVY DUTY):

Application: Slurry and Mud Rubber Hose for spraying of cement grout at irrigation projects, buildings, sites, dams, bridges and road in hilly terrains.

Sandhya Enterprises AN ISO:9001;2015 Certified Company is manufacture and Supplier of Slurry and

Mud Rubber Hose As per IS: IS: 13071-1991 Specification:

Size: 6” ID to 10” ID

End Fitting: MS Flange as per ASA 150 # ANSI 16.5 Drilled and DIN Specification.

Working Pressure ‐10 to 25kg/cm2 Color: Black

Vaccum:500 to 700hg

Temperature‐ 150Deg C Top: Plain and Corrugated.

Lining : Synthetic Rubber High Ablation Resistance.

Reinforcement:High Quality and Heat Resistance Fabric and Tyre Cord Reinforcement.

Helical Wire:10 WWG to 8 SWG High Tensile Spring Helical Wire

Cover: Weather Resistance Synthetic Rubber

REGULAR SIZE: SANDHYAFLEX‐SMRH ‐150NB ‐6 Inch ID SANDHYAFLEX‐SMRH ‐200NB ‐8 Inch ID SANDHYAFLEX‐SMRH ‐250NB ‐10 Inch ID

Construction:

Core : Black colour, Synthetic and natural rubber blend resistant to abrasion

Reinforcement : High Tensile Synthetic Textile cord

Cover :Black colour, Synthetic rubber resistant to ozone, weather and abrasion

Application:For Cement/ Plaster/ Sand placement in construction industry

  • Working Pressure:25 Bar (25Kg/cm2)
  • Proof Pressure:1.5 times of W.P.
  • Bursting Pressure: 3 times of W.P.
  • Reinforcement: 2 or 3 galvanized wire helices embedded in layers of Rubber compounds
  • End Connection: Built –in- Flange Type
  • Maxim length: 15 Mtr till 5” Dia
  • Application: Suction & Discharge of Sand and Gravel, Mud Slurry, Concrete Slurry/Mining Particles etc.
  • Bore: Smooth Bore
  • Bending Radius:10xInner Diameter of Hose
  • Vacuum:Minimum700mmHg (0.9Bar)
  • Lining material: NR/SBR Resistant to the passage of Abrasive and Corrosive Products
  • Hardness-50 to 60 Shore A.
  • Carcass: Synthetic Textile Plies with Embedded Steel Helix
  • Coating Material: Resistance to Severe and Bad Weather
  • Temperature: @1 Deg C to 100 Deg C



  • S No Description Max Length
    1 6” (150mm)ID x 6 Mtr (LG) with Both End MS Flange as per ASA 150# 15 Mtr
    2 8” (200mm)ID x 6 Mtr (LG) with Both End MS Flange as per ASA 150# 06 Mtr
    3 10” (250mm)ID x 6 Mtr (LG) with Both End MS Flange as per ASA 150# 06 Mtr
    4 12” (300mm)ID x 6 Mtr (LG) with Both End MS Flange as per ASA 150# 06 Mtr
    5 14” (300mm)ID x 5 Mtr (LG) with Both End MS Flange as per ASA 150# 05 Mtr
    6 16” (300mm)ID x 5 Mtr (LG) with Both End MS Flange as per ASA 150# 05 Mtr

    Diagrams

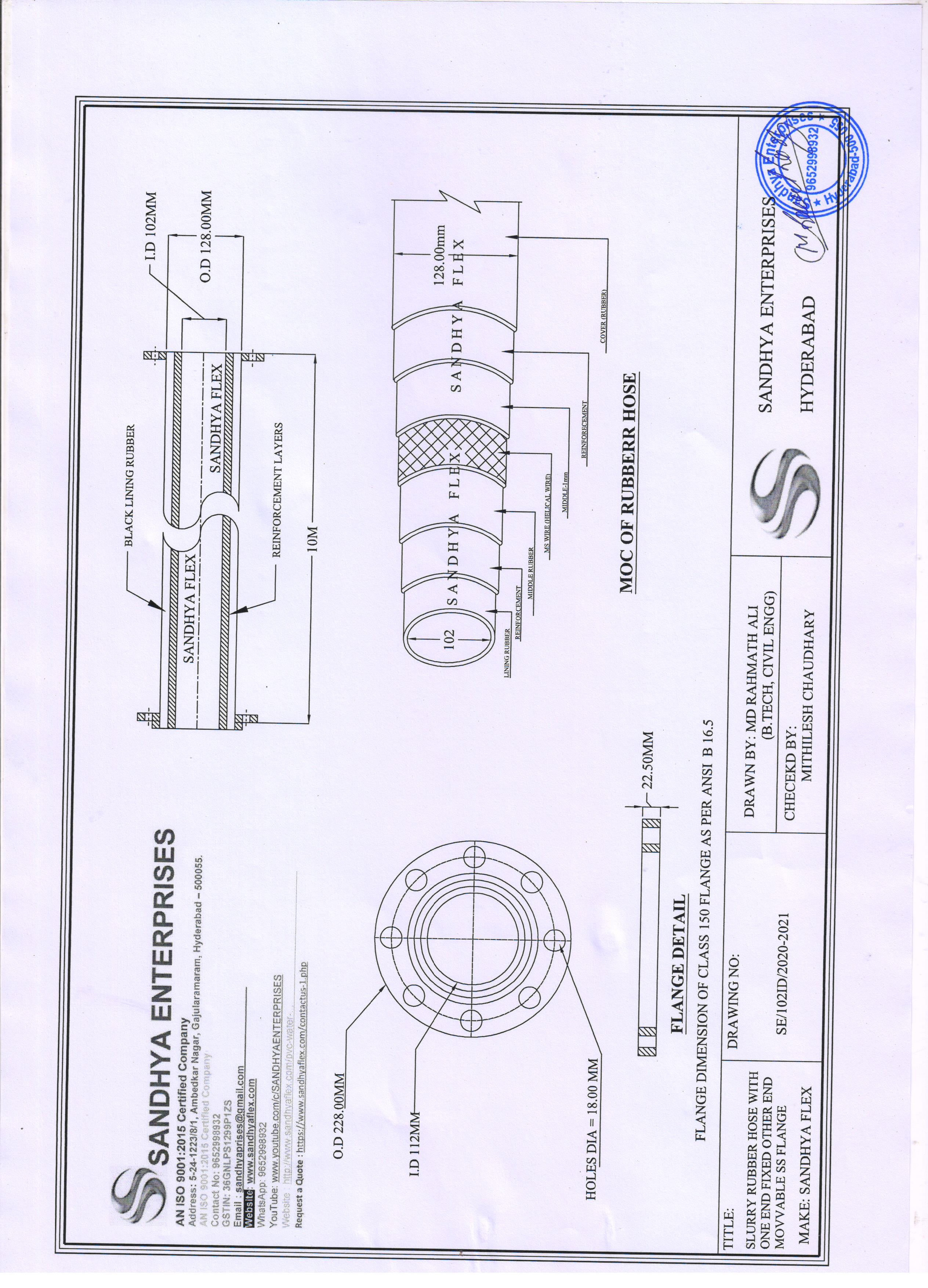

    100mm IDx 10Mtr bsf slurry rubber hose

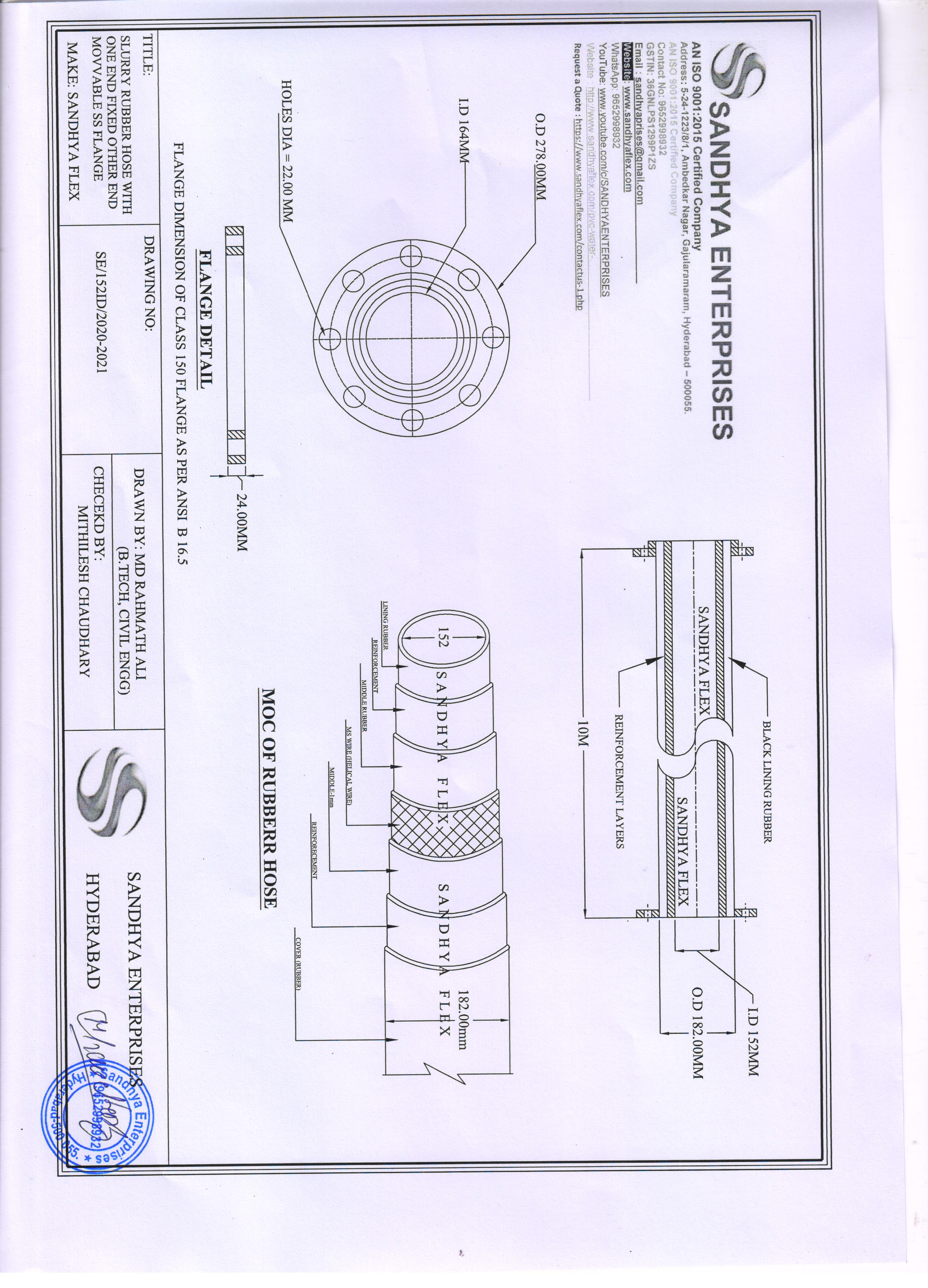

    150mm IDx 10Mtr bsf slurry rubber hose

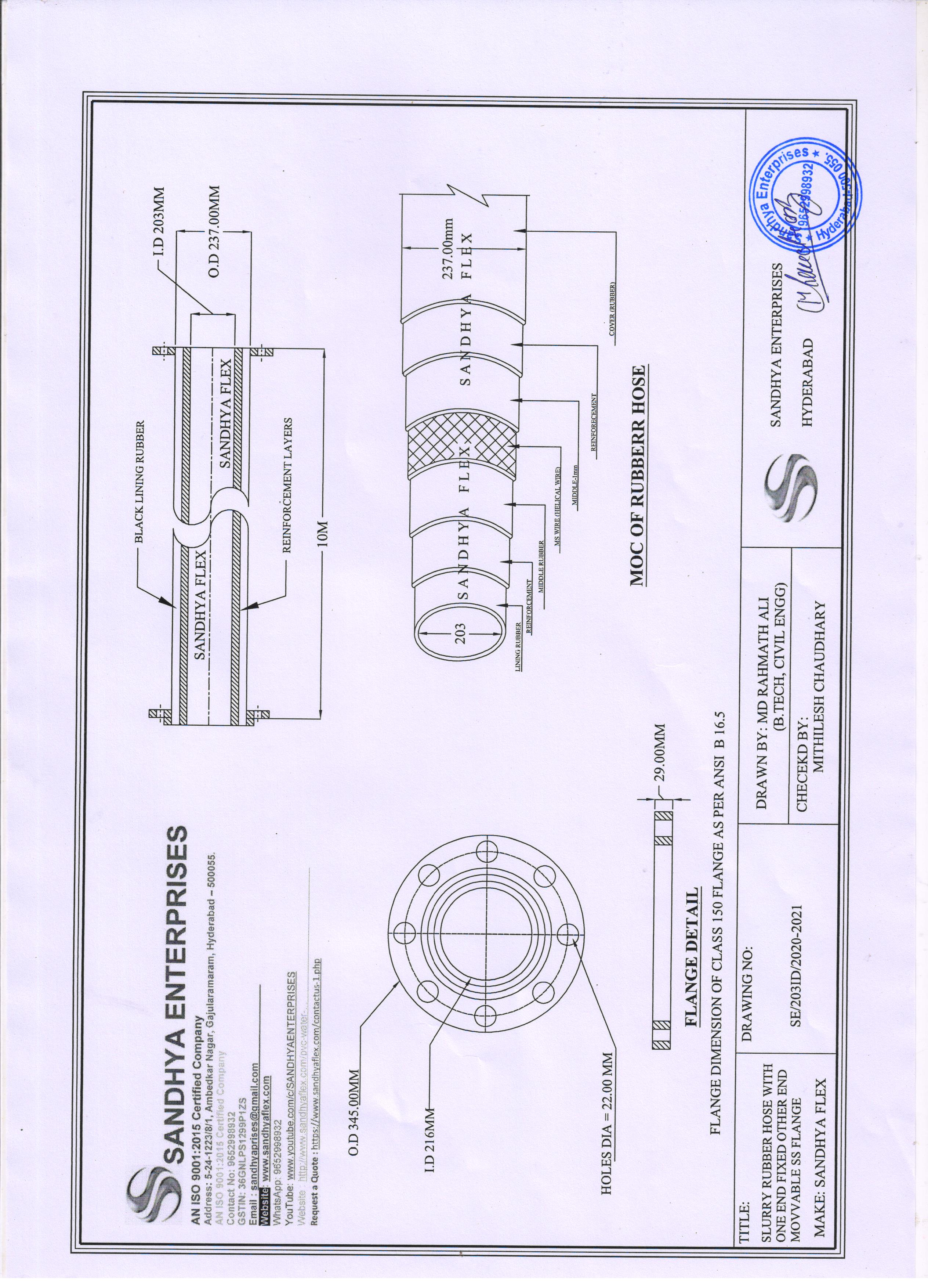

    200mm IDx 10Mtr bsf slurry rubber hose

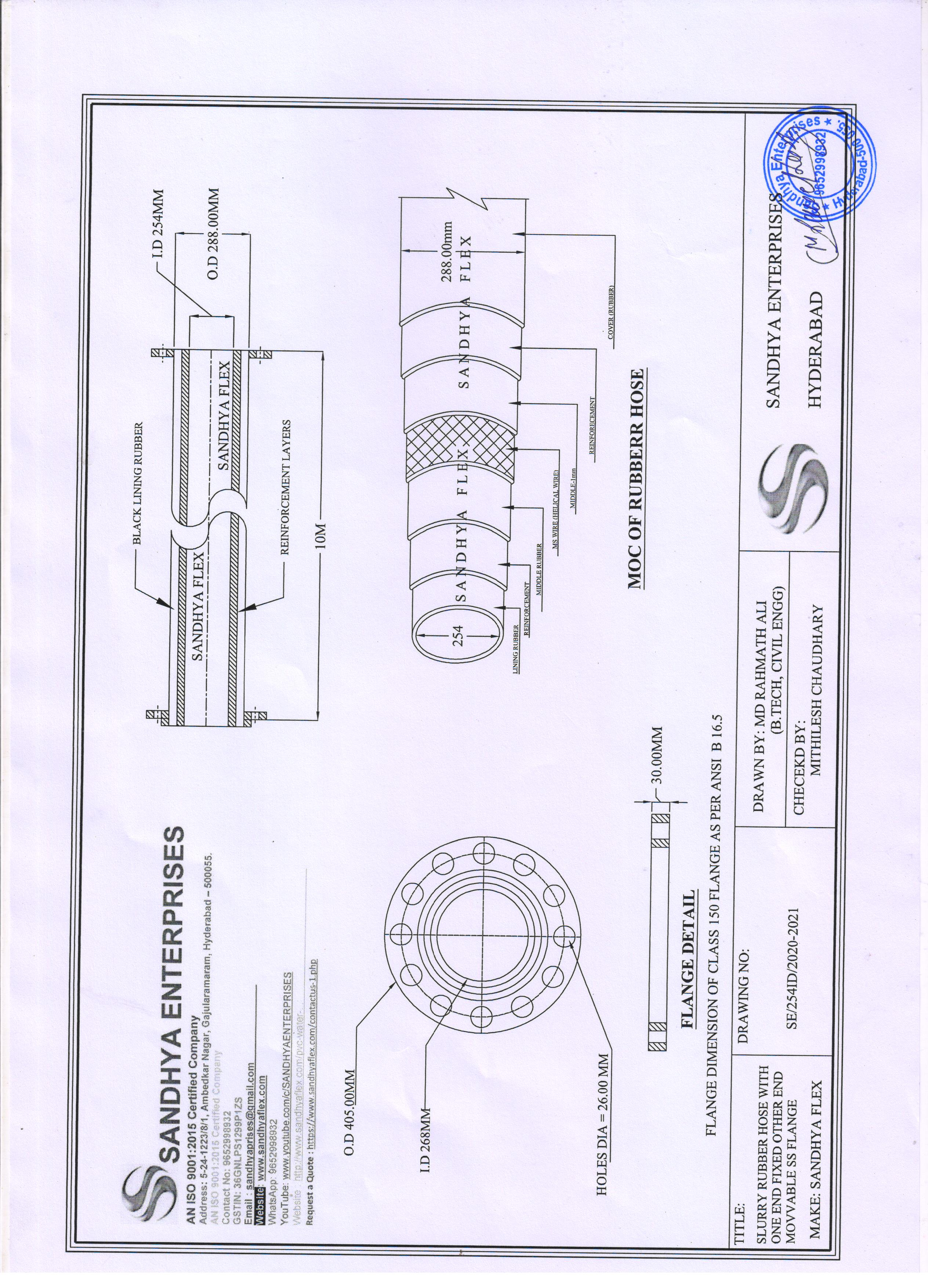

    250mm IDx 10Mtr bsf slurry rubber hose

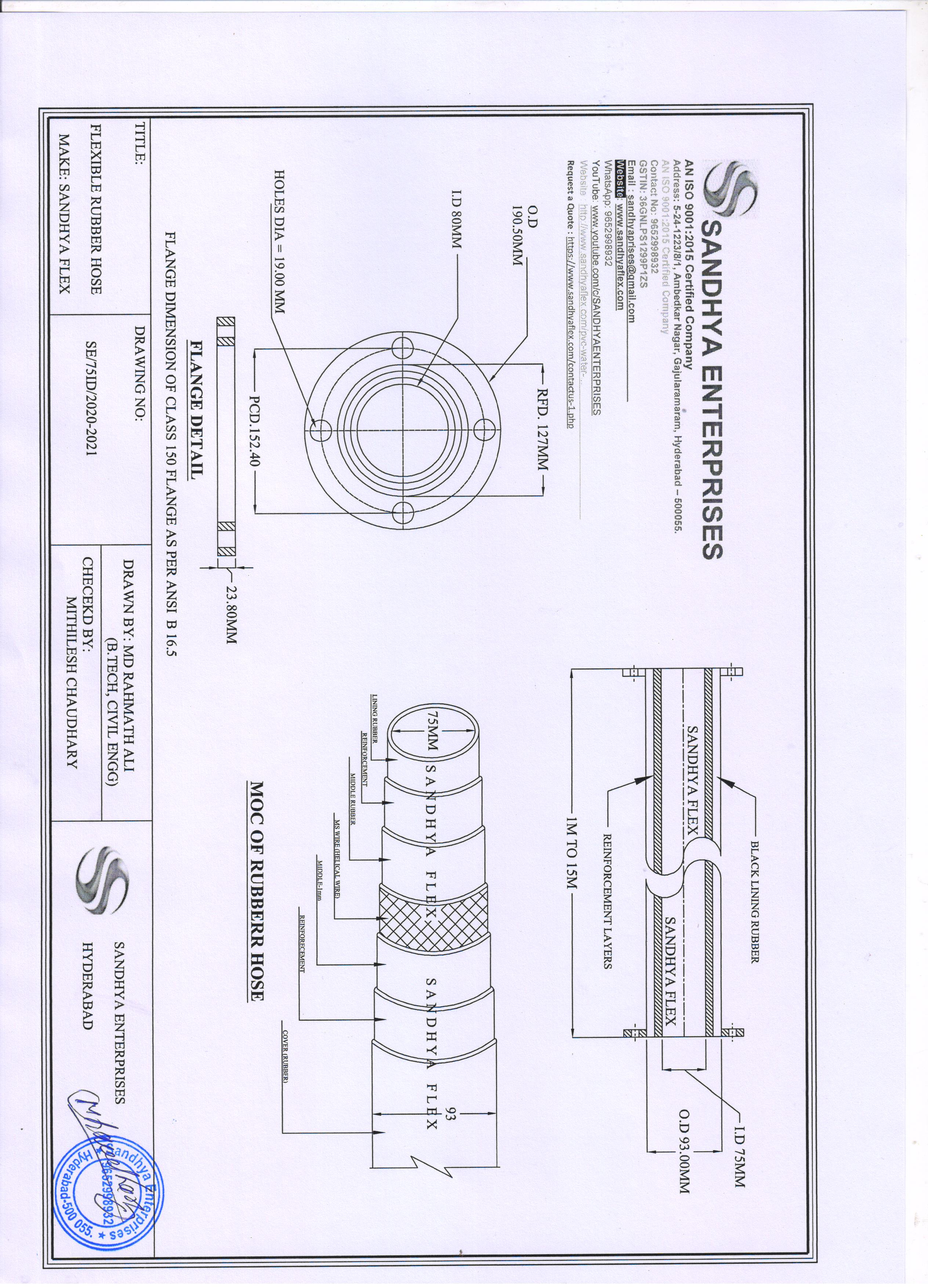

    75mm ID Rubber Hose

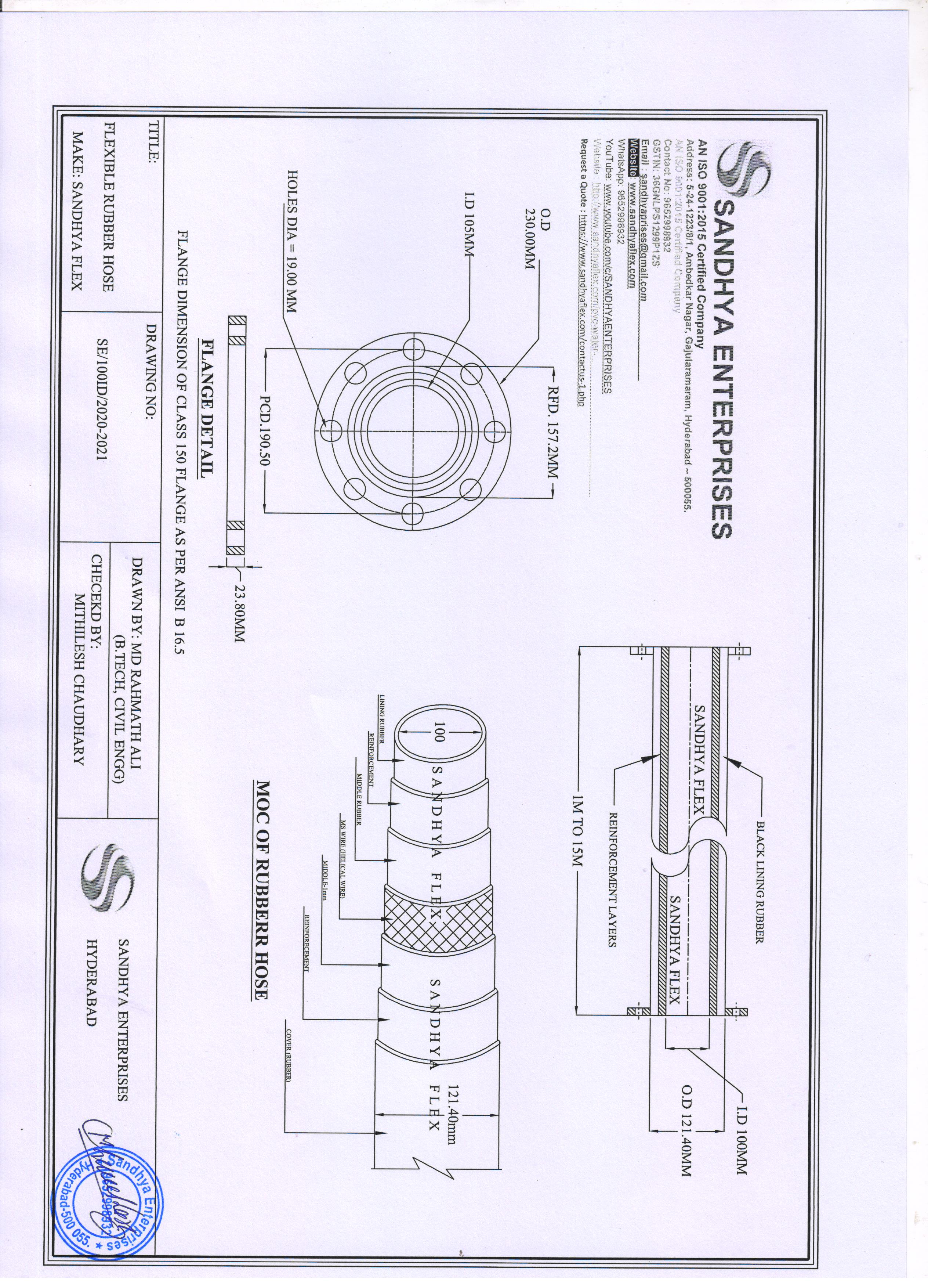

    100mm ID Rubber Hose
    125mm ID Rubber Hose

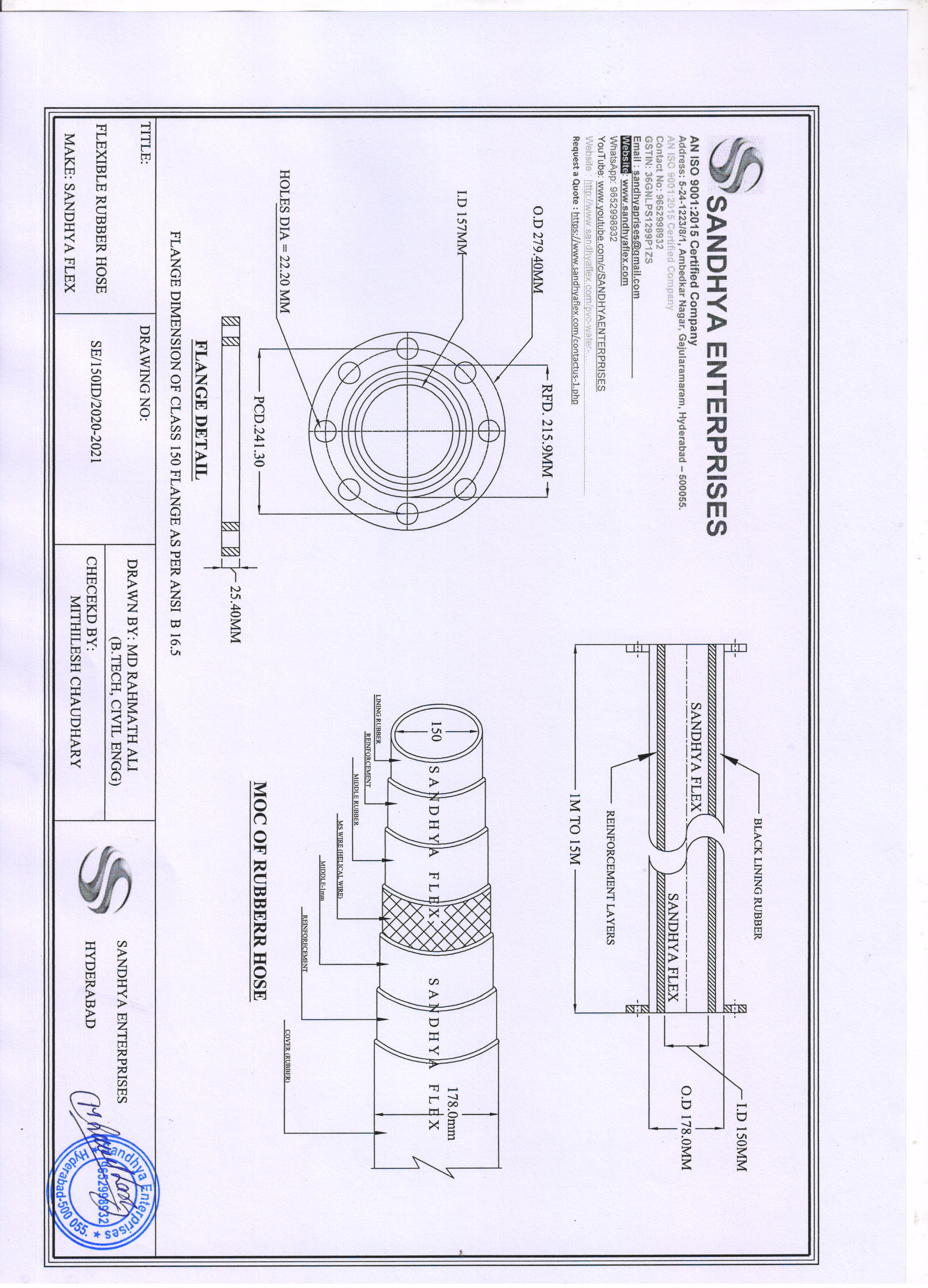

    150mm ID Rubber Hose



    200mm ID Rubber Hose
    250mm ID Rubber Hose

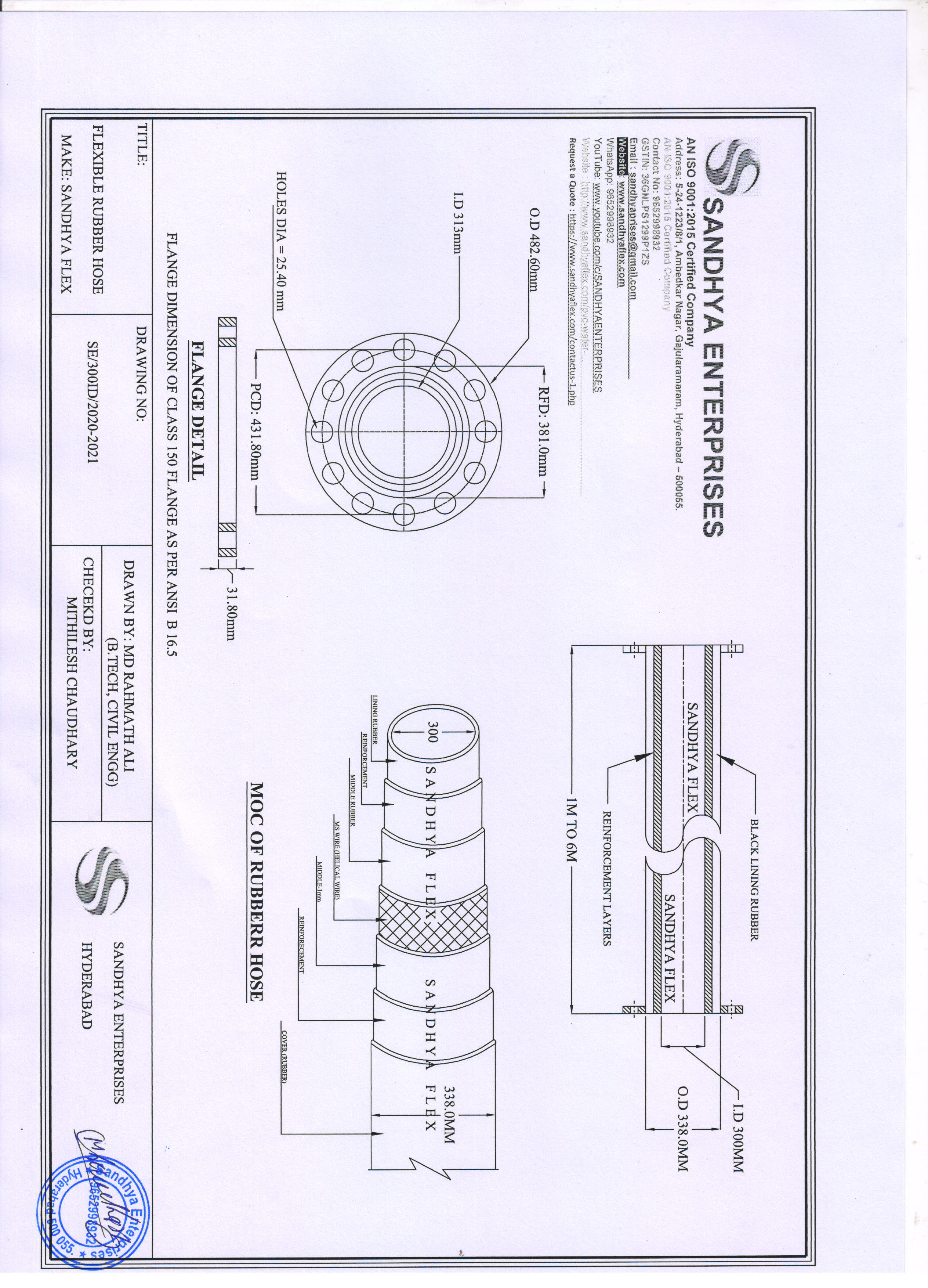

    300mm ID Rubber Hose
    350mm ID Rubber Hose

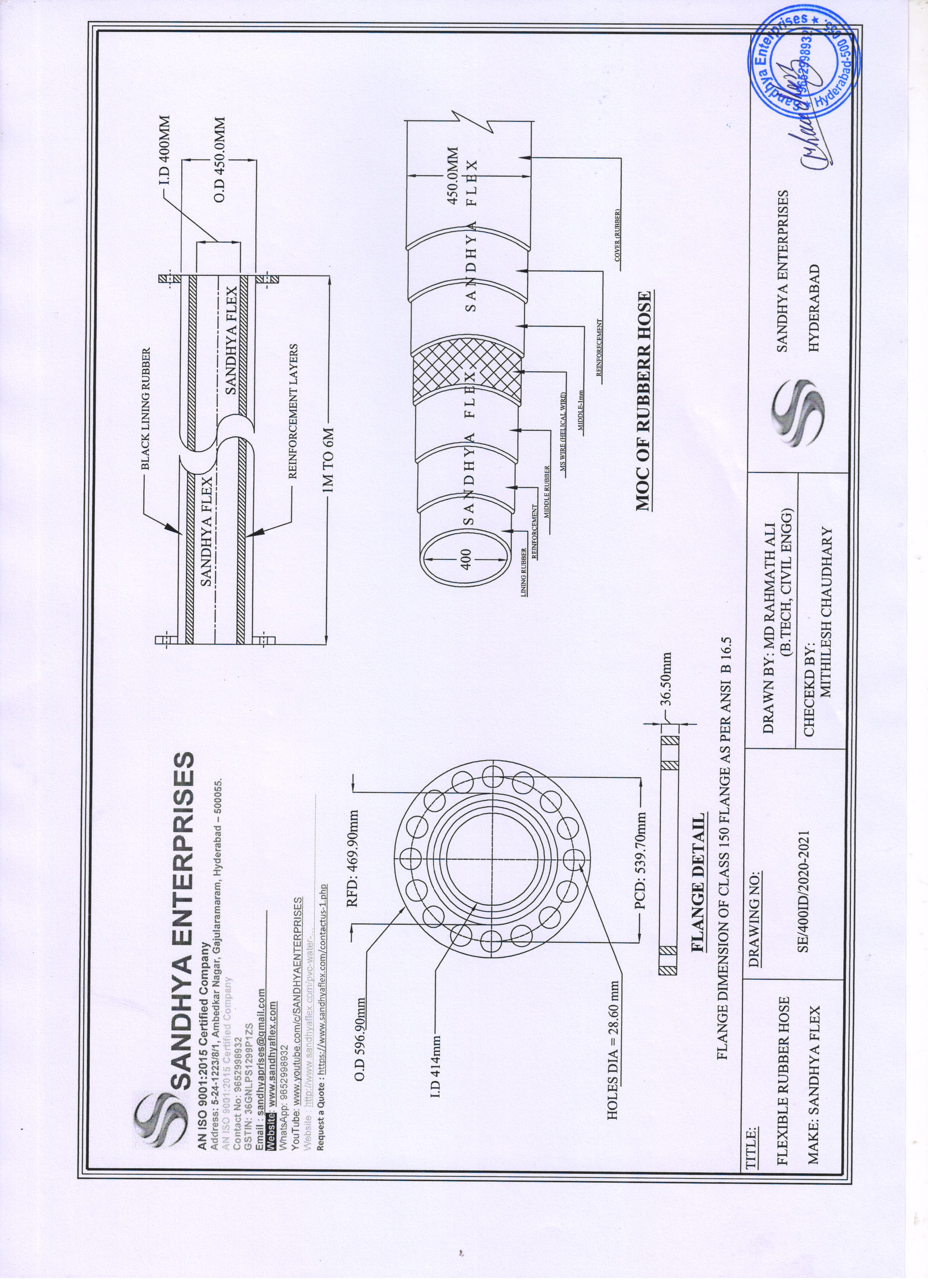

    400mm ID Rubber Hose

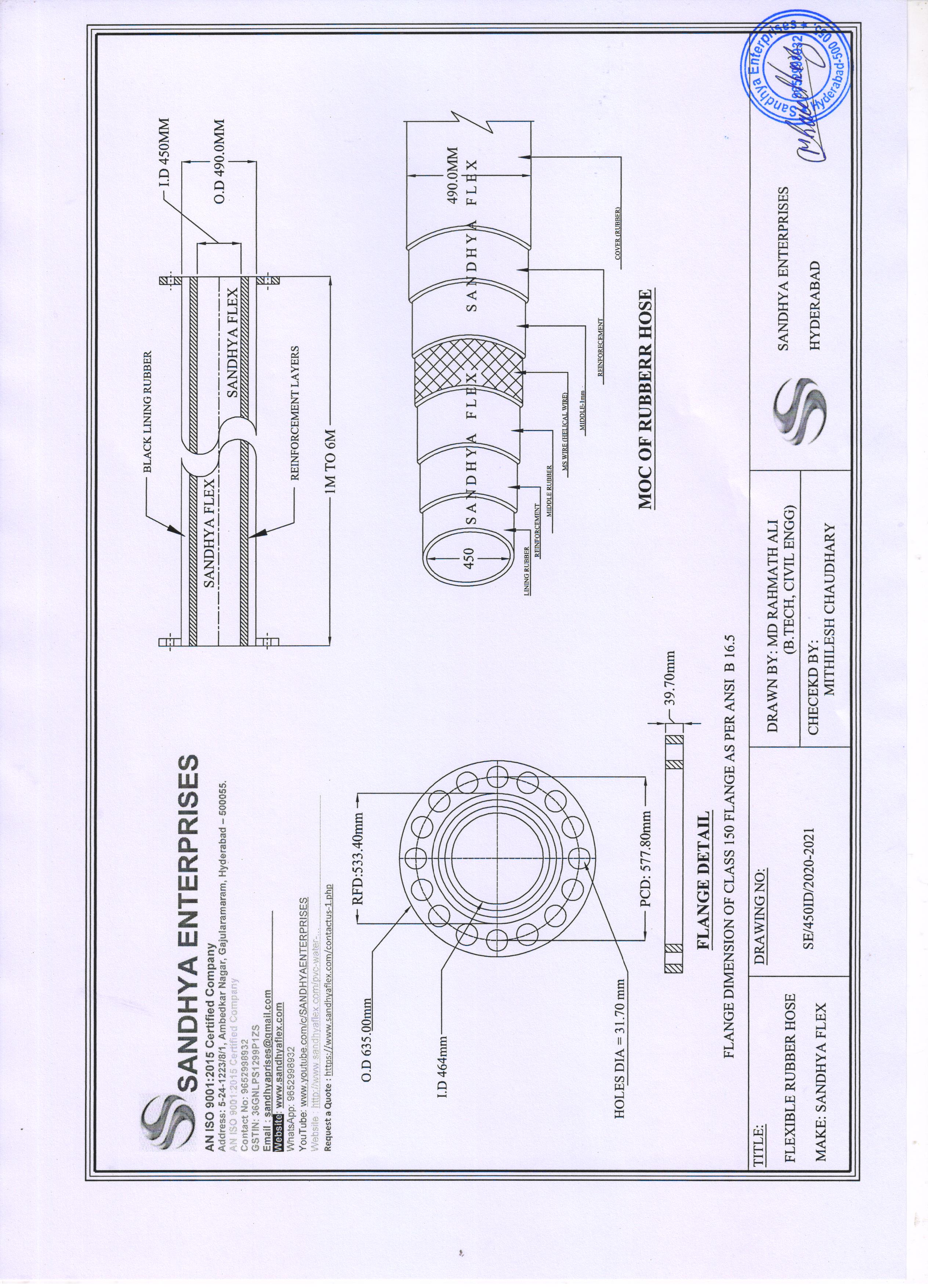

    450mm ID Rubber Hose

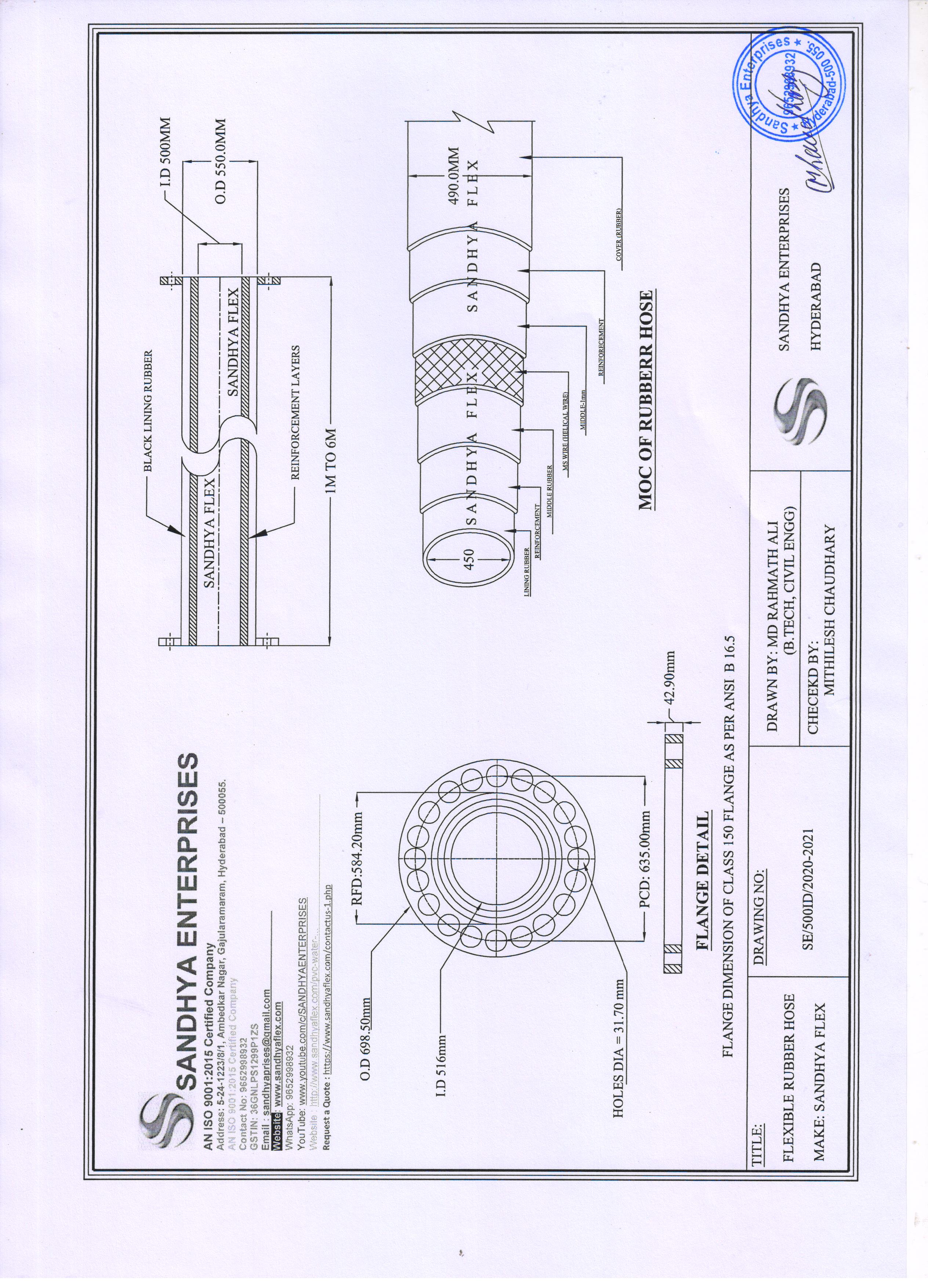

    500mm ID Rubber Hose

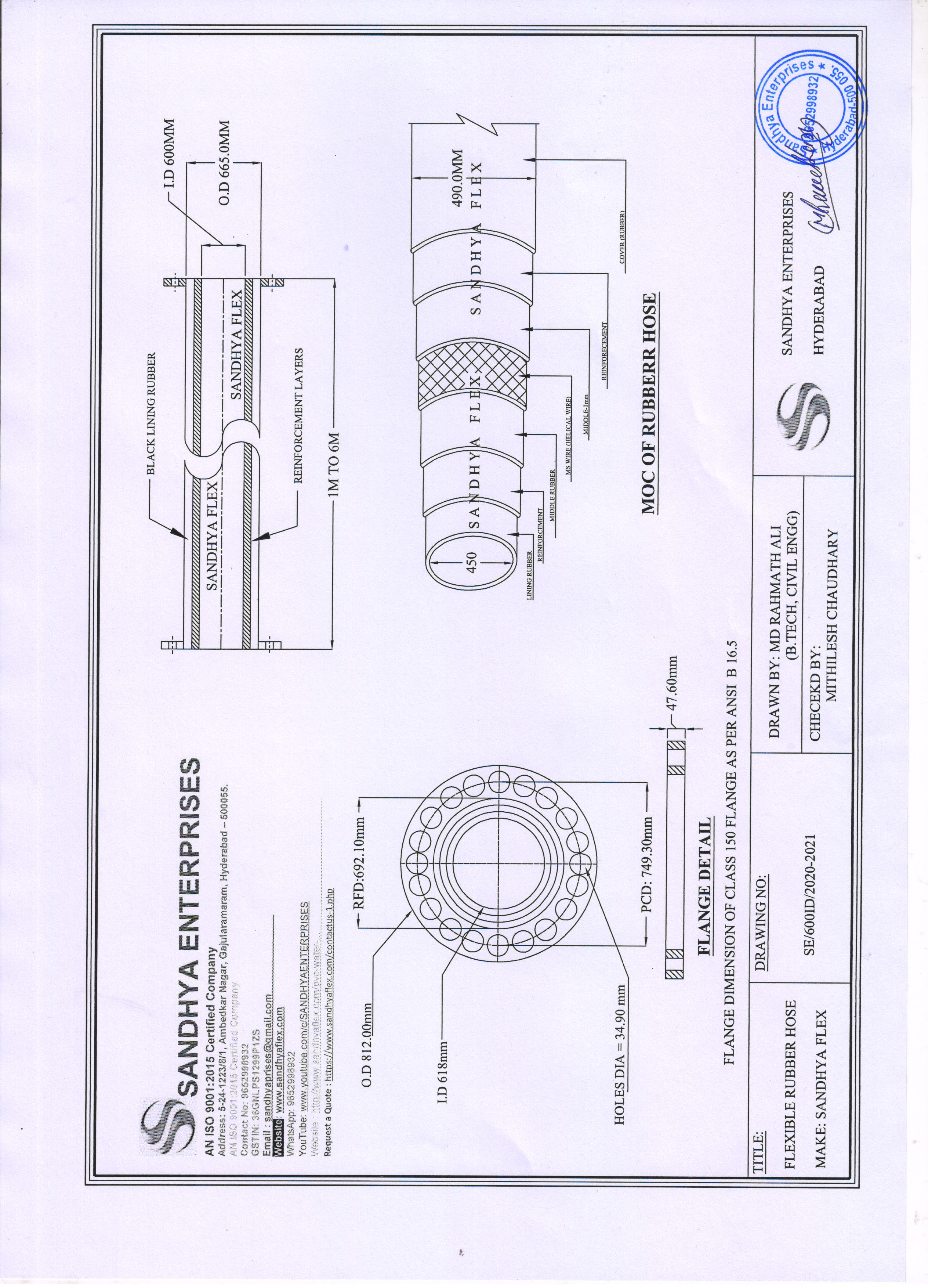

    600mm ID Rubber Hose

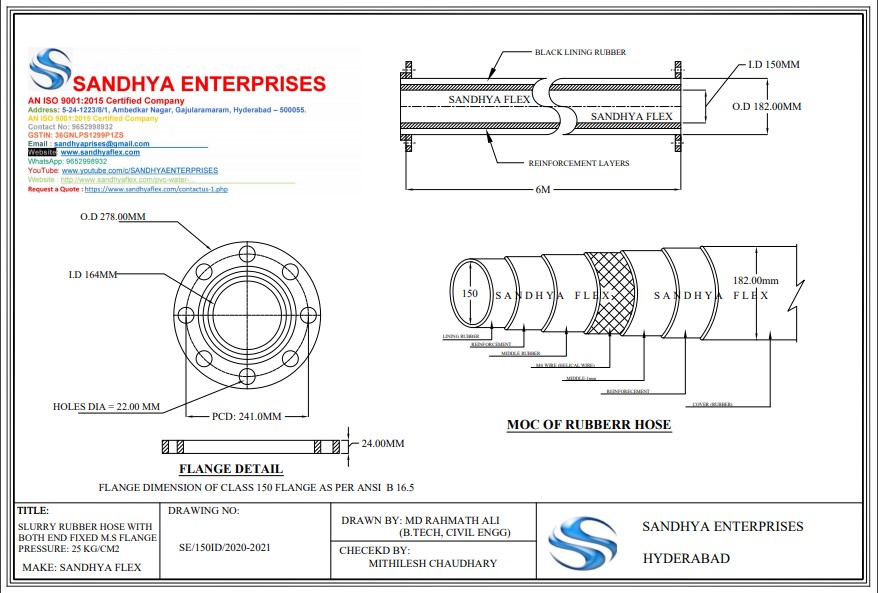

    6-INCH 6-MTR 20-LG Rubber Hose

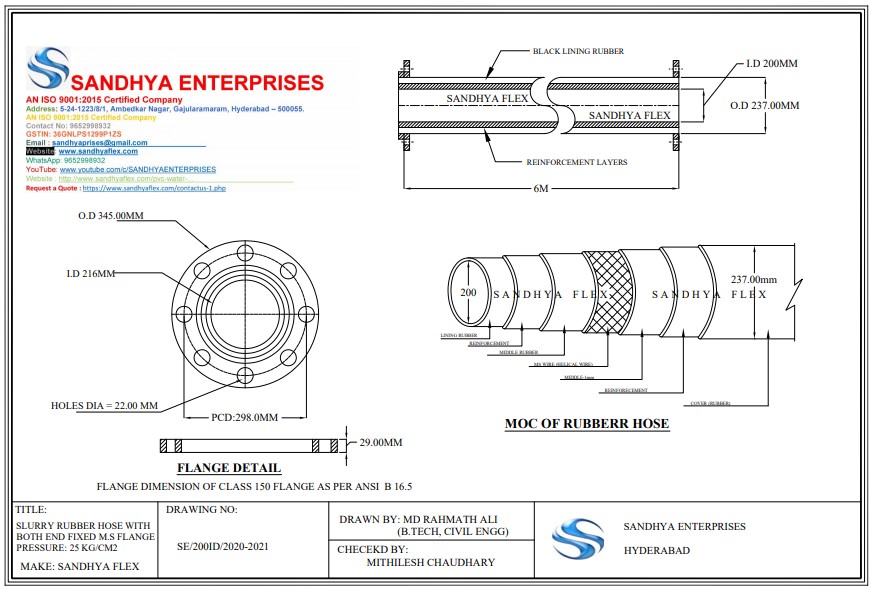

    8-INCH 6-MTR 20-LG Rubber Hose

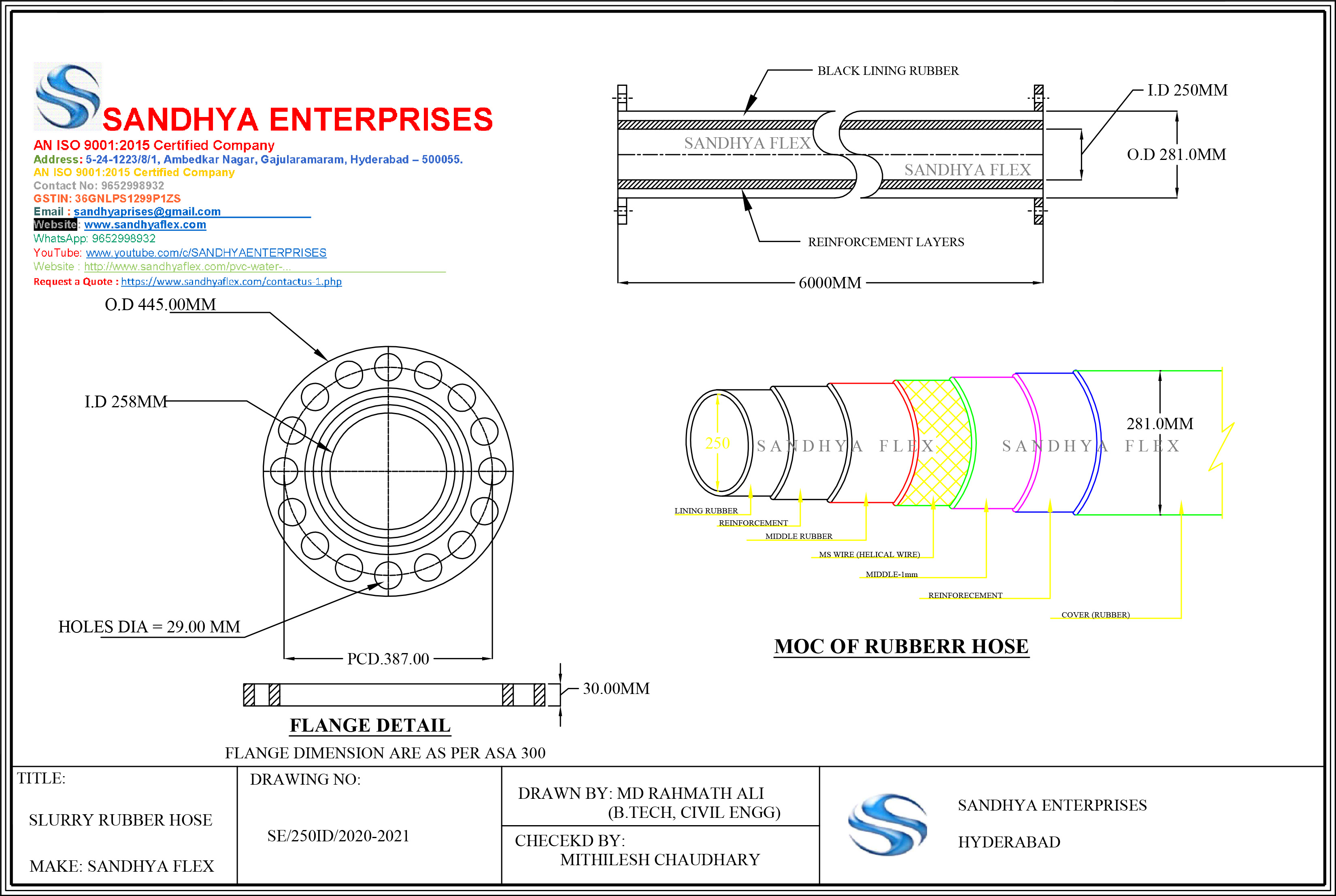

    10-INCH 6-MTR 20-LG Rubber Hose
