Oil Suction Rubber Hose

Oil Suction Rubber Hose :

Oil Suction Rubber Hose Application: For dock and offshore operation of petroleum products containing not more than 25% aromatic hydrocarbon content.

Construction-Lining: Lining : Smooth lining of suitable rubber compounds; uniform in thickness; free from air blisters & porosity; resistant to all grade of petroleum & blended products having an aromatic hydro-carbon content not more than 25%.

  • Reinforcement :
  • Plies of rubber impregnated woven textile with helically embedded G.I.wire.
Oil Suction Rubber Hose

Cover : Corrugated or cloth marked finish, suitable rubber compound having resistance to oil, abrasion & weather.

Electrical Bonding : A strand of copper wire is embedded between the reinforcement plies to provide electrical continuity throughout the hose.

End Connections:The hose has built in nipples flanges or without flanges as per customer's specification.

Oil Suction Rubber Hose Technical Details :

Nom. Bore in (mm) Tolerance on Nom. bore (mm) Projection to Nipple (min) W.P. 7Kg/cm2 Rough Bore Mass Kg/m Bend Radius M B.P. 28Kg/cm2 Smooth Bore Mass Kg/m Bend Radius M W.P. 10Kg/cm2 Rough Bore Mass Kg/m Bend Radius M B.P. 40Kg/cm2 Smooth Bore Mass Kg/m Bend Radius M W.P. 15Kg/cm2 Rough Bore Mass Kg/m Bend Radius M B.P. 60Kg/cm2 Smooth Bore Mass Kg/m Bend Radius M
63 ± 2.0 115 8.5 0.75 6.5 0.65 10.5 0.85 8.5 0.70 ** ** ** **
75 ± 2.0 130 10.0 0.85 7.5 0.70 12.0 1.00 10.0 0.85 ** ** ** **
100 ± 2.0 150 15.0 1.10 11.0 1.0 18.0 1.25 14.0 1.00 ** ** ** **
150 + 2.0 150 30.0 1.60 22.5 1.40 36.0 1.85 24.0 1.60 48.0 2.15 3.15 2.00
200 ± 3.0 165 45.0 2.15 28.5 1.85 51.0 2.50 36.0 2.15 48.0 2.15 4.35 2.80
250 ± 3.0 180 ** ** ** ** 66.0 3.10 49.5 2.70 78.0 3.70 66.0 3.40
300 ± 3.0 180 ** ** ** ** 81.0 3.70 66.0 3.30 93.0 4.00 80.0 4.00

Oil Suction Rubber Hose - Diagrams

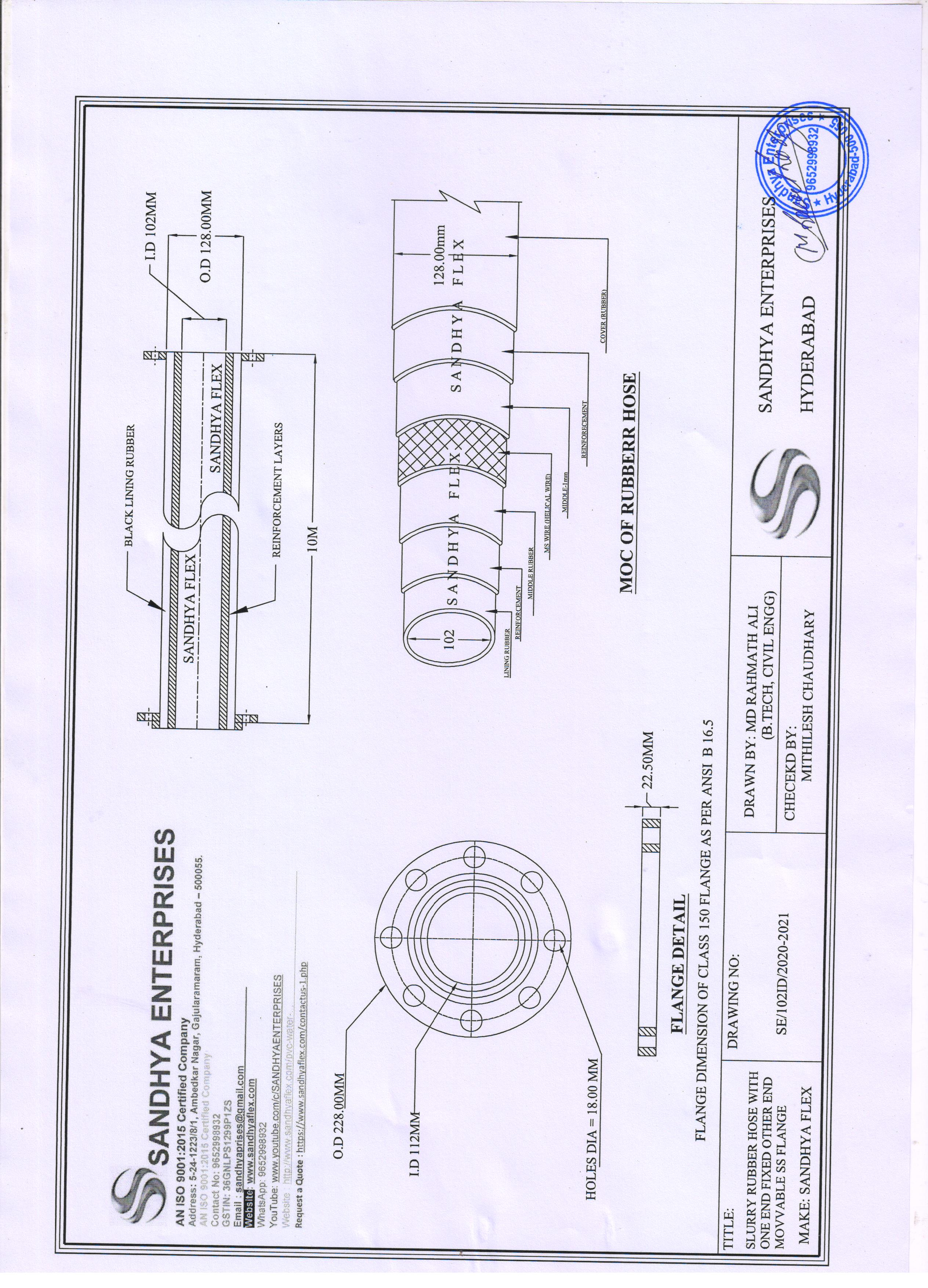

100mm IDx 10Mtr BSF Oil Suction Rubber Hose

100mm IDx 10Mtr BSF Oil Suction Rubber Hose

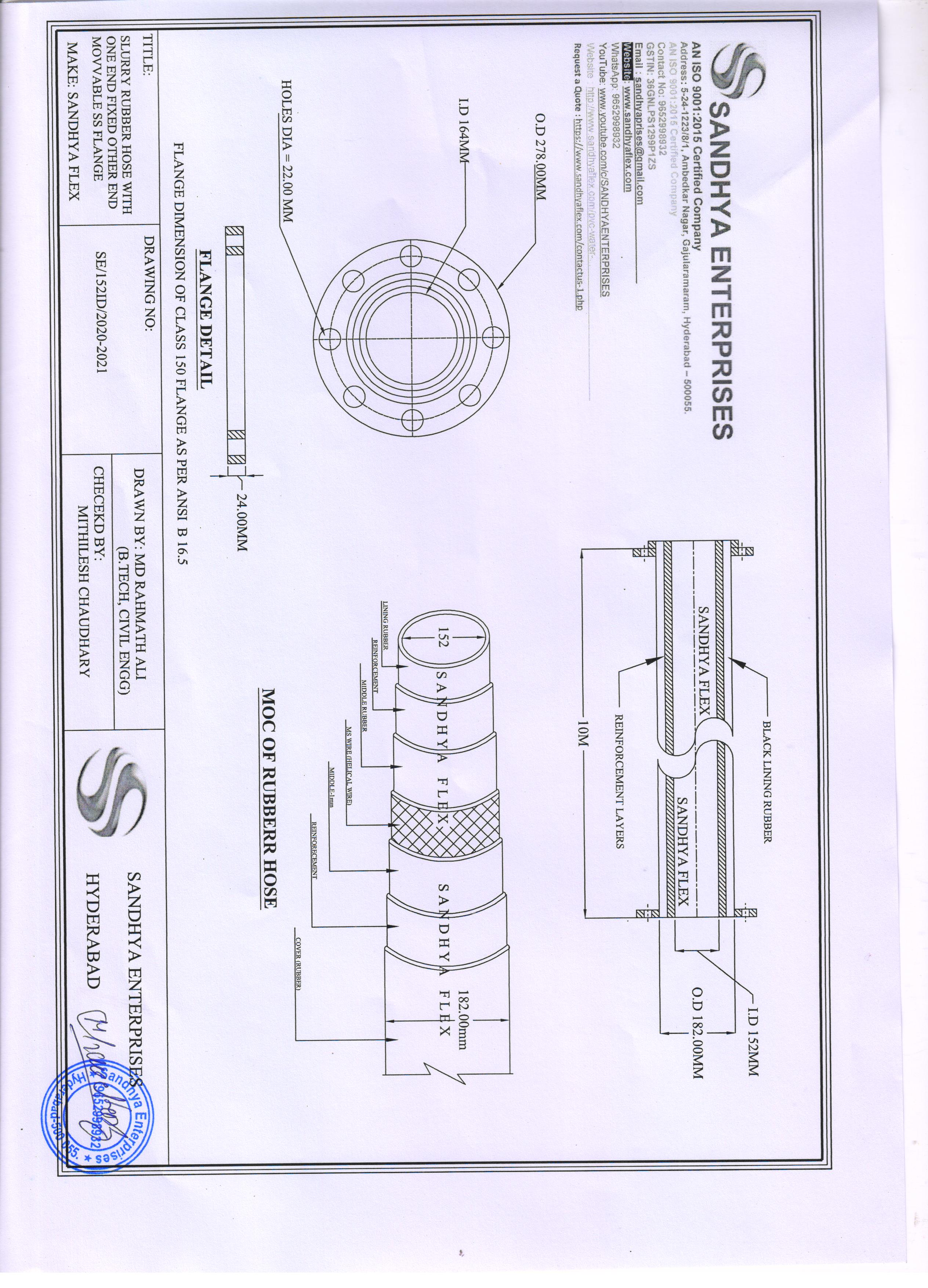

150mm IDx 10Mtr BSF Oil Suction Rubber Hose

150mm IDx 10Mtr BSF Oil Suction Rubber Hose

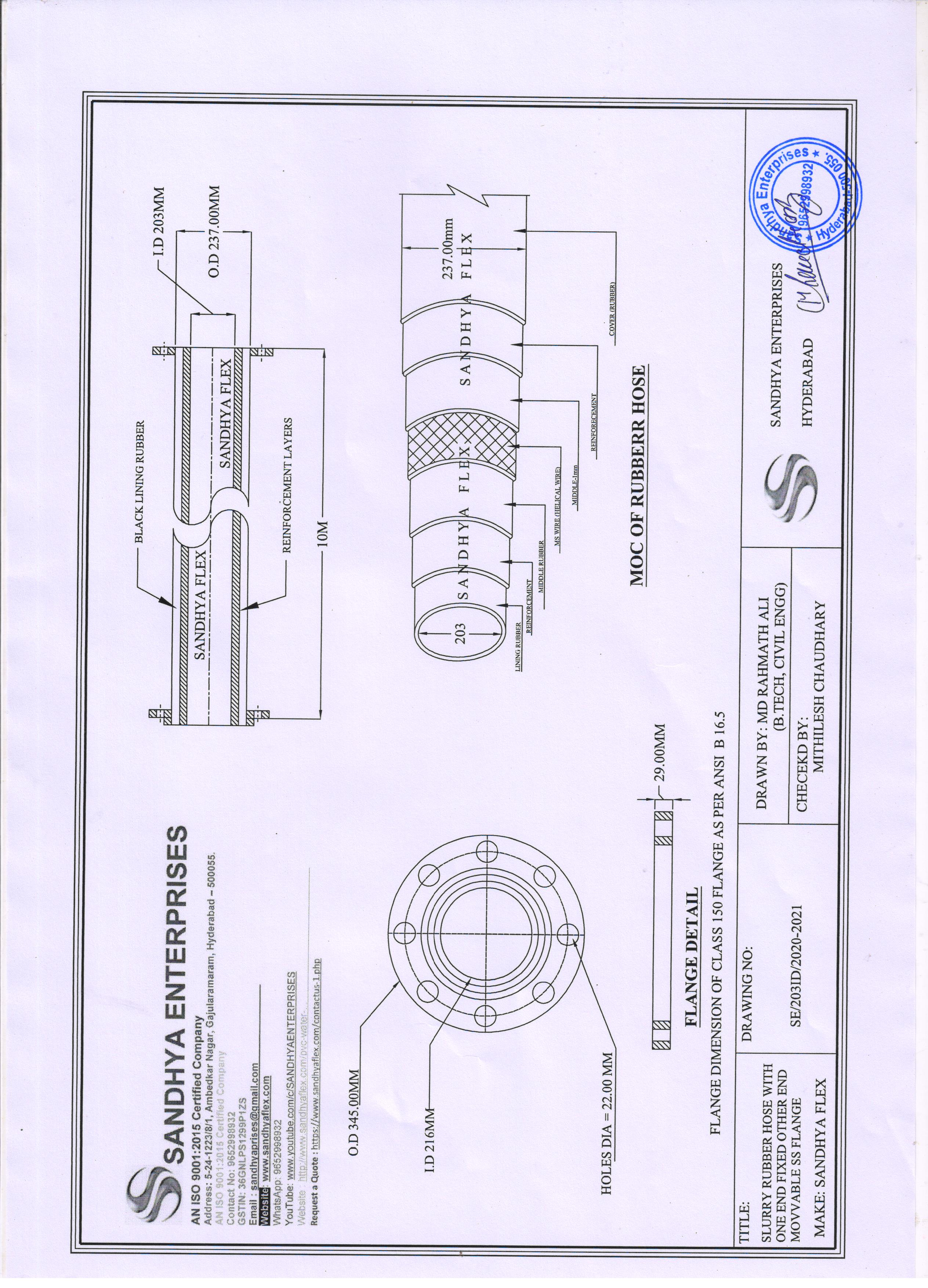

200mm IDx 10Mtr BSF Oil Suction Rubber Hose

200mm IDx 10Mtr BSF Oil Suction Rubber Hose

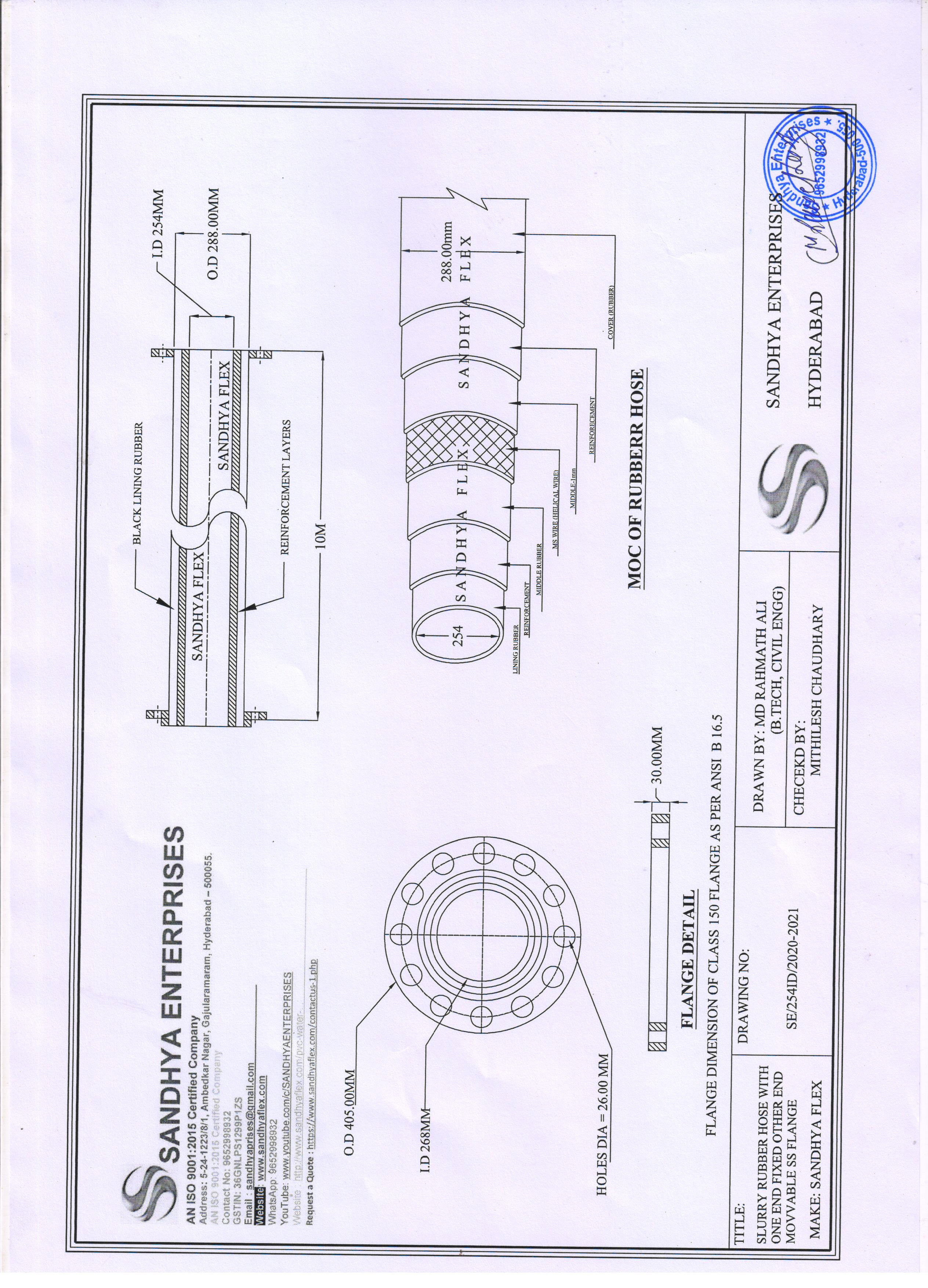

250mm IDx 10Mtr BSF Oil Suction Rubber Hose

250mm IDx 10Mtr BSF Oil Suction Rubber Hose

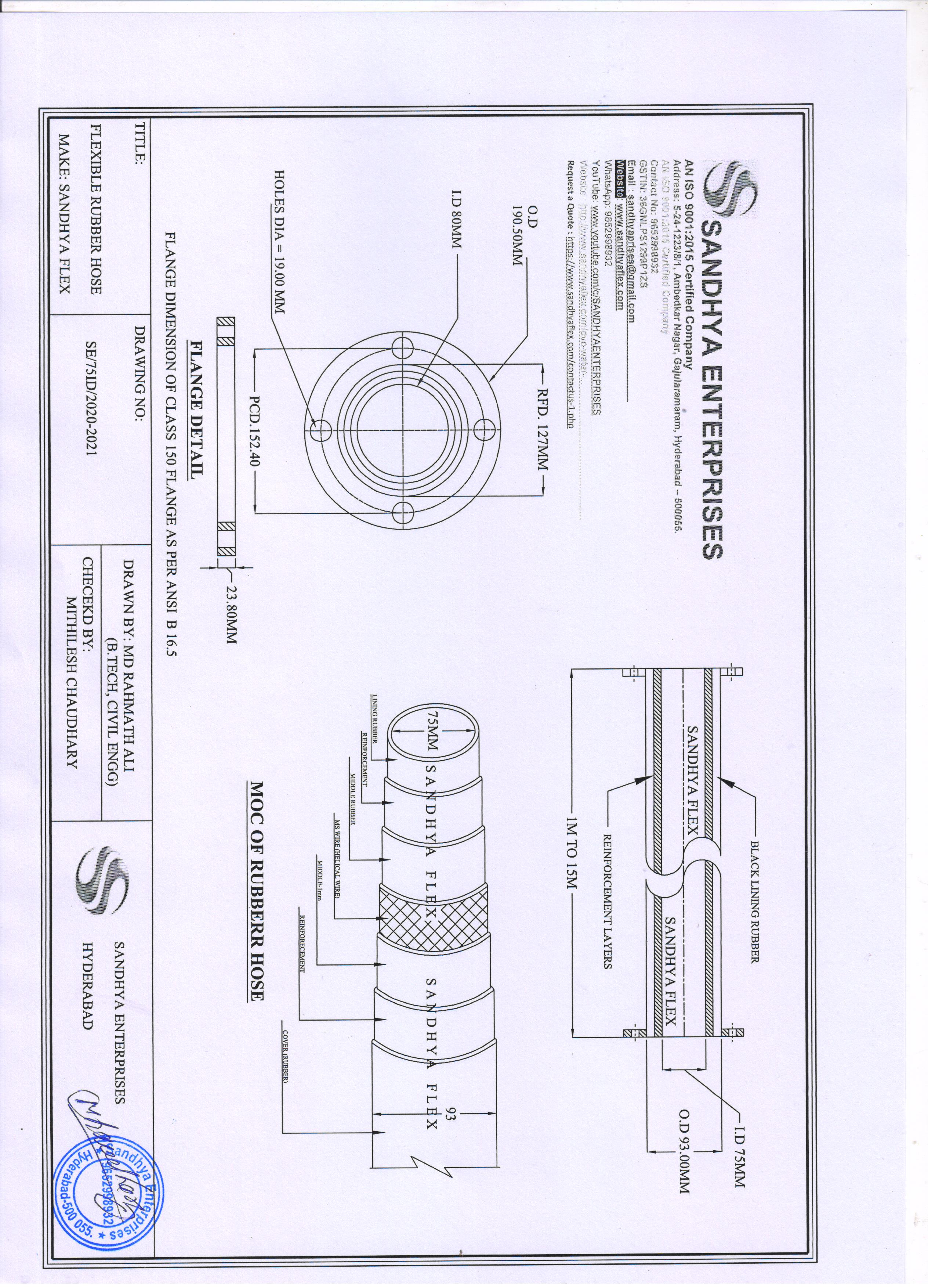

75mm ID Oil Suction Rubber Hose

75mm ID Oil Suction Rubber Hose

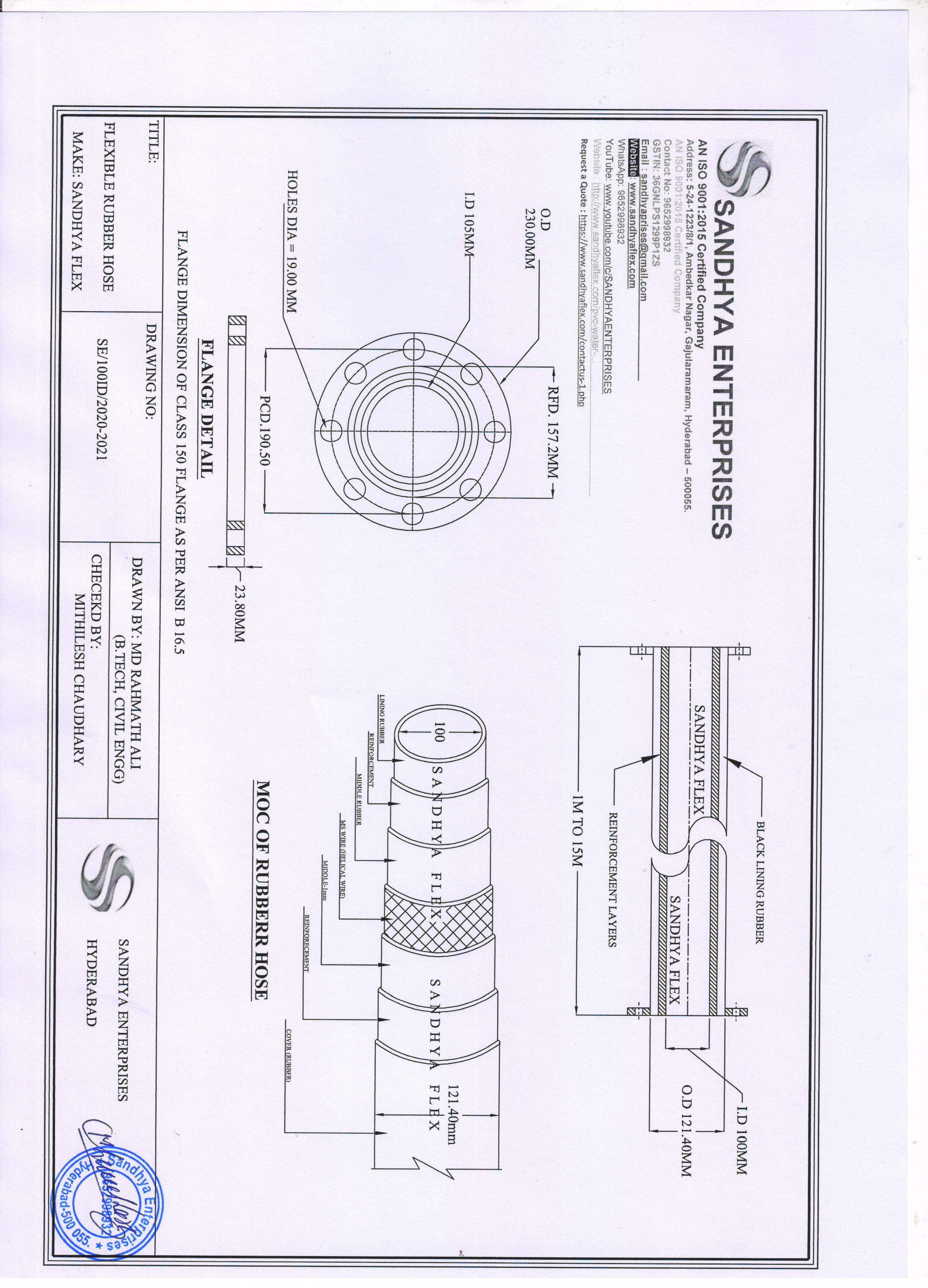

100mm ID Oil Suction Rubber Hose

100mm ID Oil Suction Rubber Hose

125mm ID Oil Suction Rubber Hose

125mm ID Oil Suction Rubber Hose

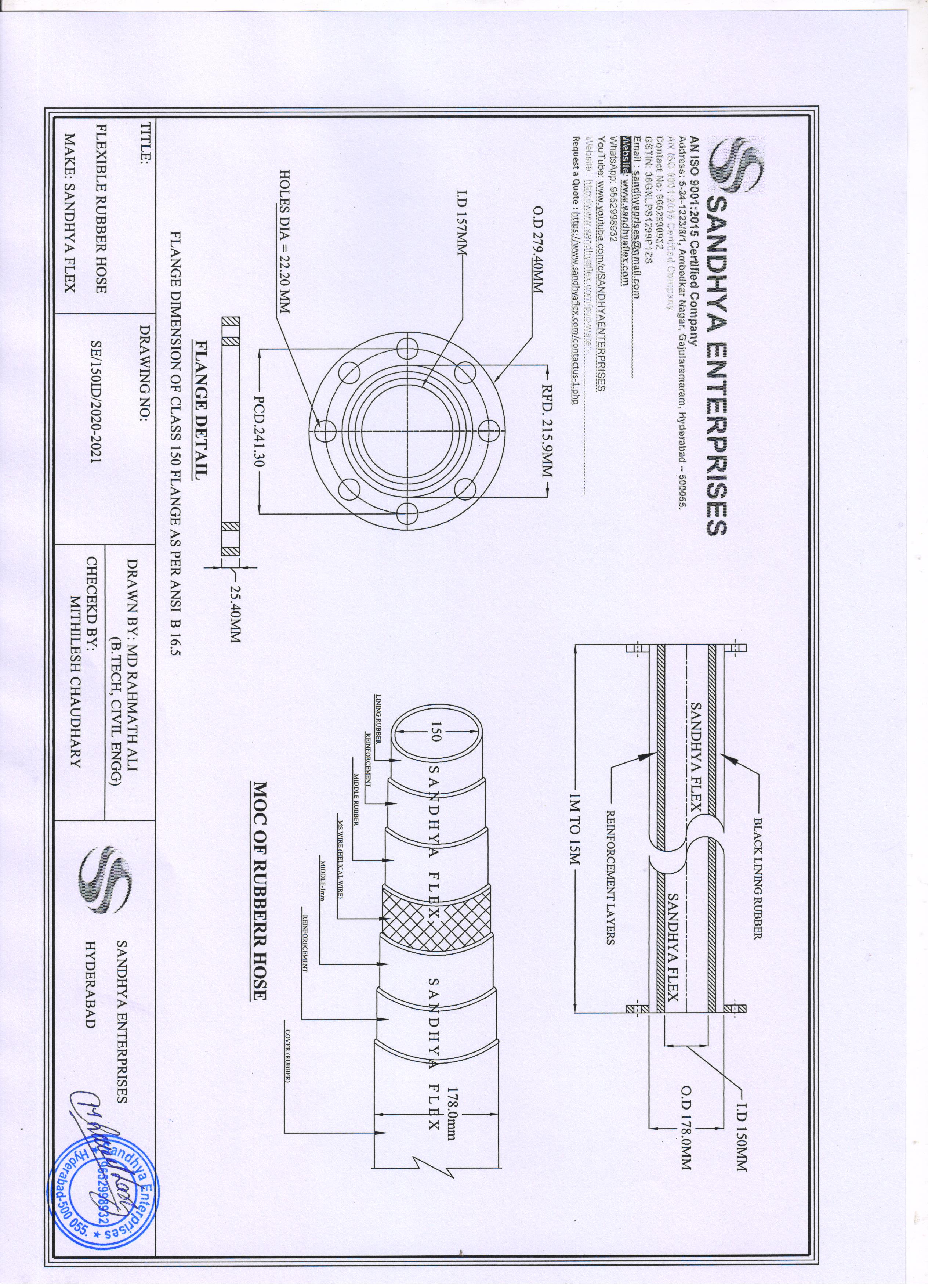

150mm ID Oil Suction Rubber Hose

150mm ID Oil Suction Rubber Hose

200mm ID Oil Suction Rubber Hose

200mm ID Oil Suction Rubber Hose

250mm ID Oil Suction Rubber Hose

250mm ID Oil Suction Rubber Hose

300mm ID Oil Suction Rubber Hose

300mm ID Oil Suction Rubber Hose

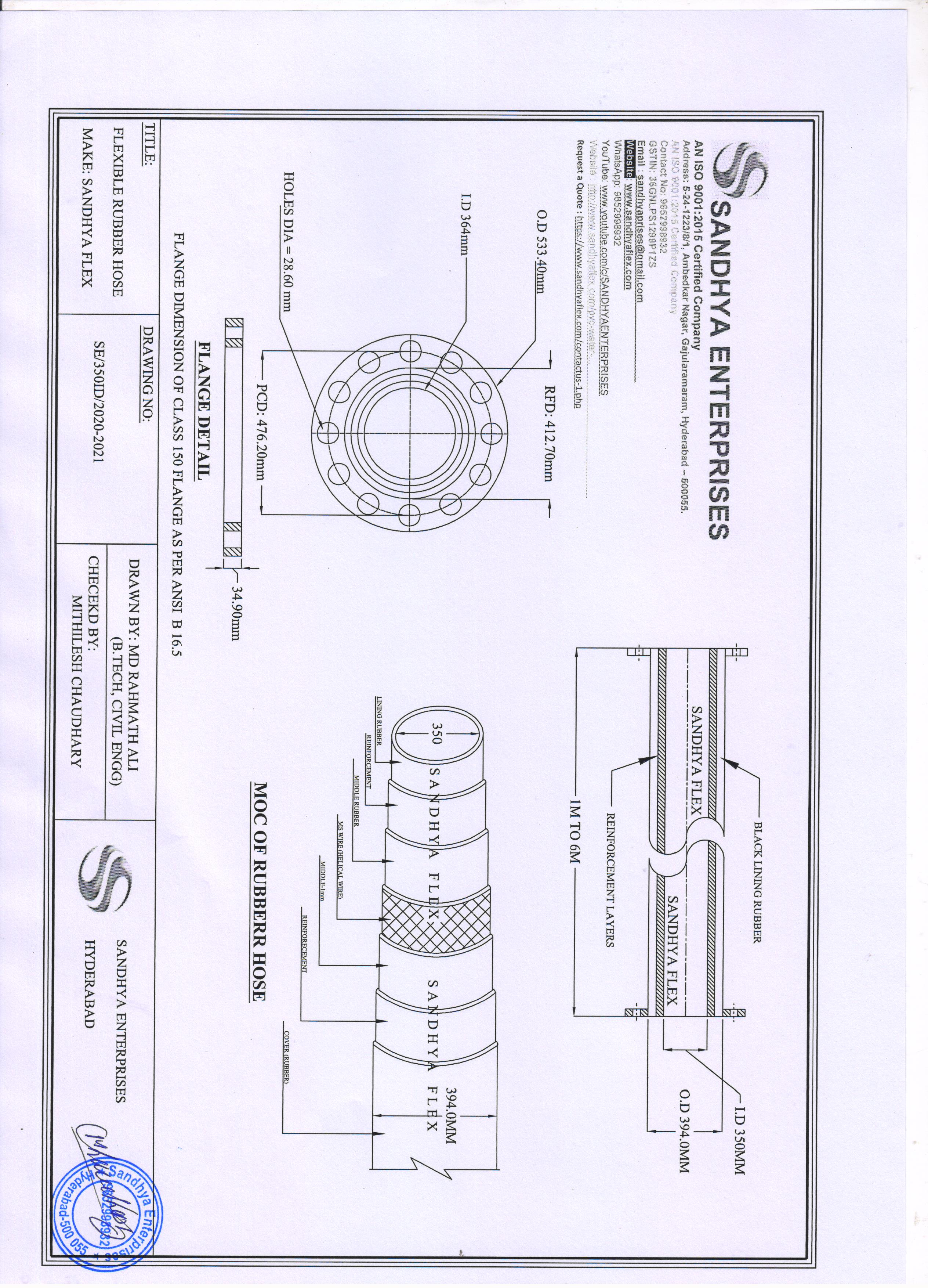

350mm ID Oil Suction Rubber Hose

350mm ID Oil Suction Rubber Hose

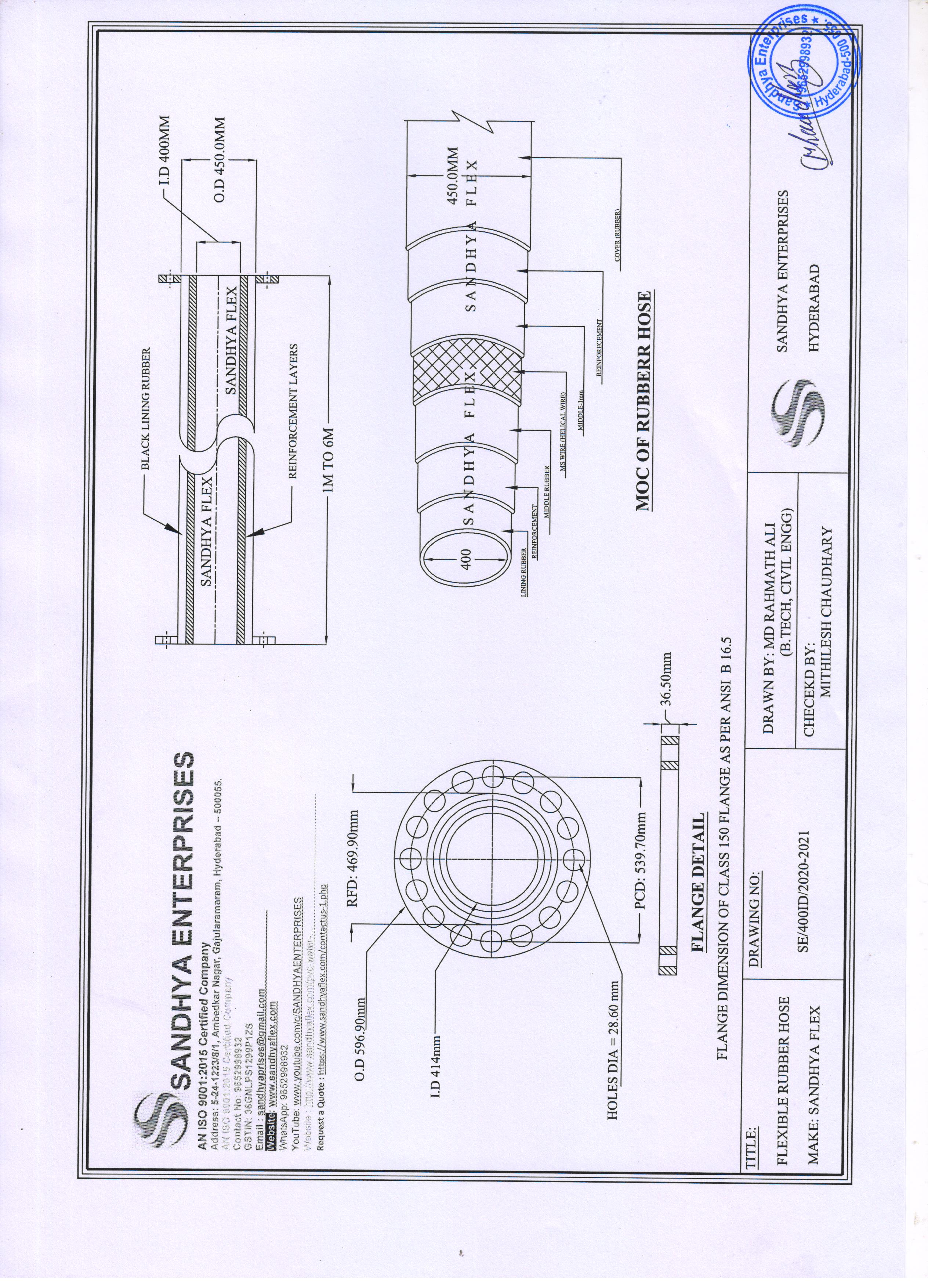

400mm ID Oil Suction Rubber Hose

400mm ID Oil Suction Rubber Hose

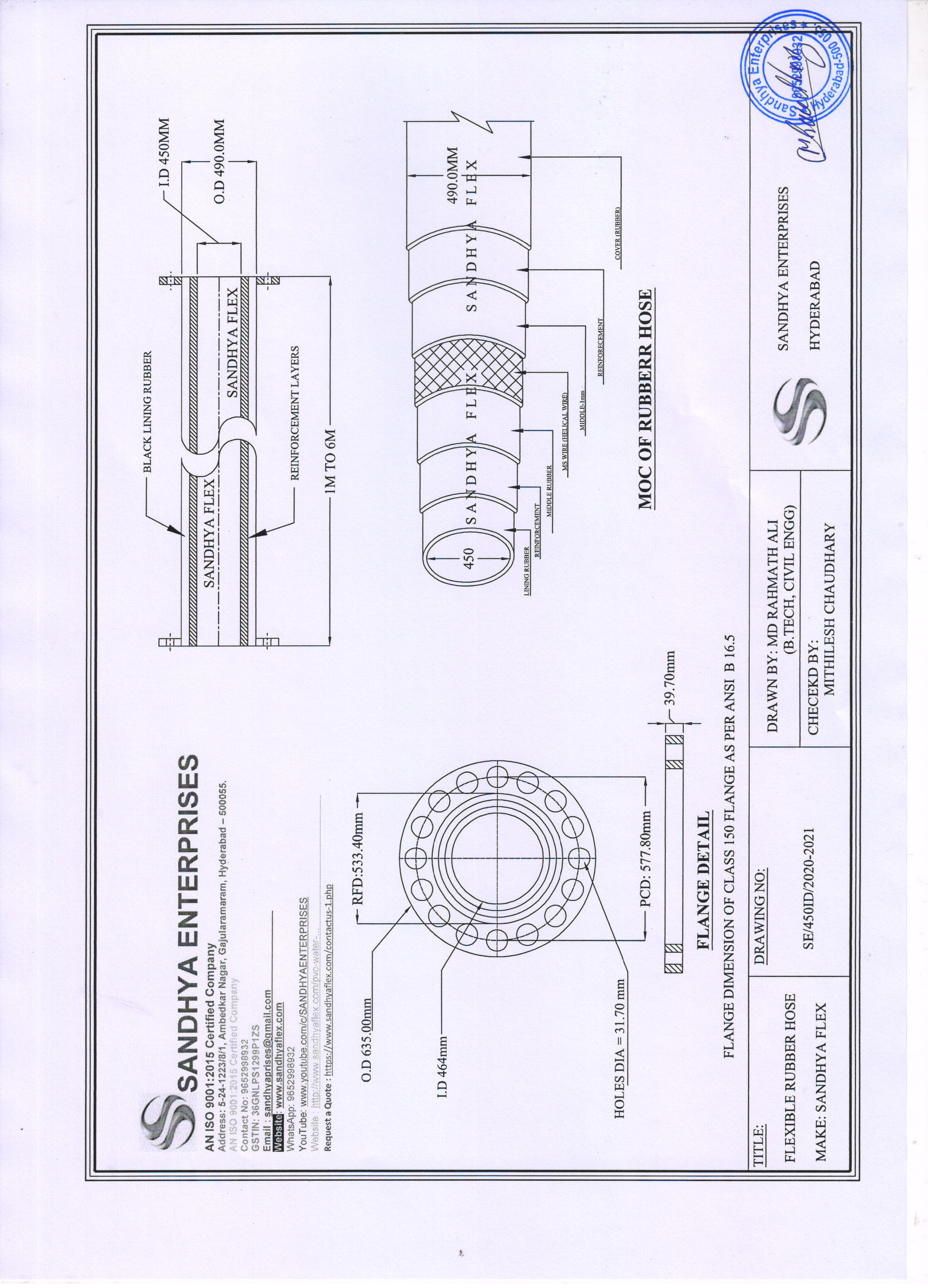

450mm ID Oil Suction Rubber Hose

450mm ID Oil Suction Rubber Hose

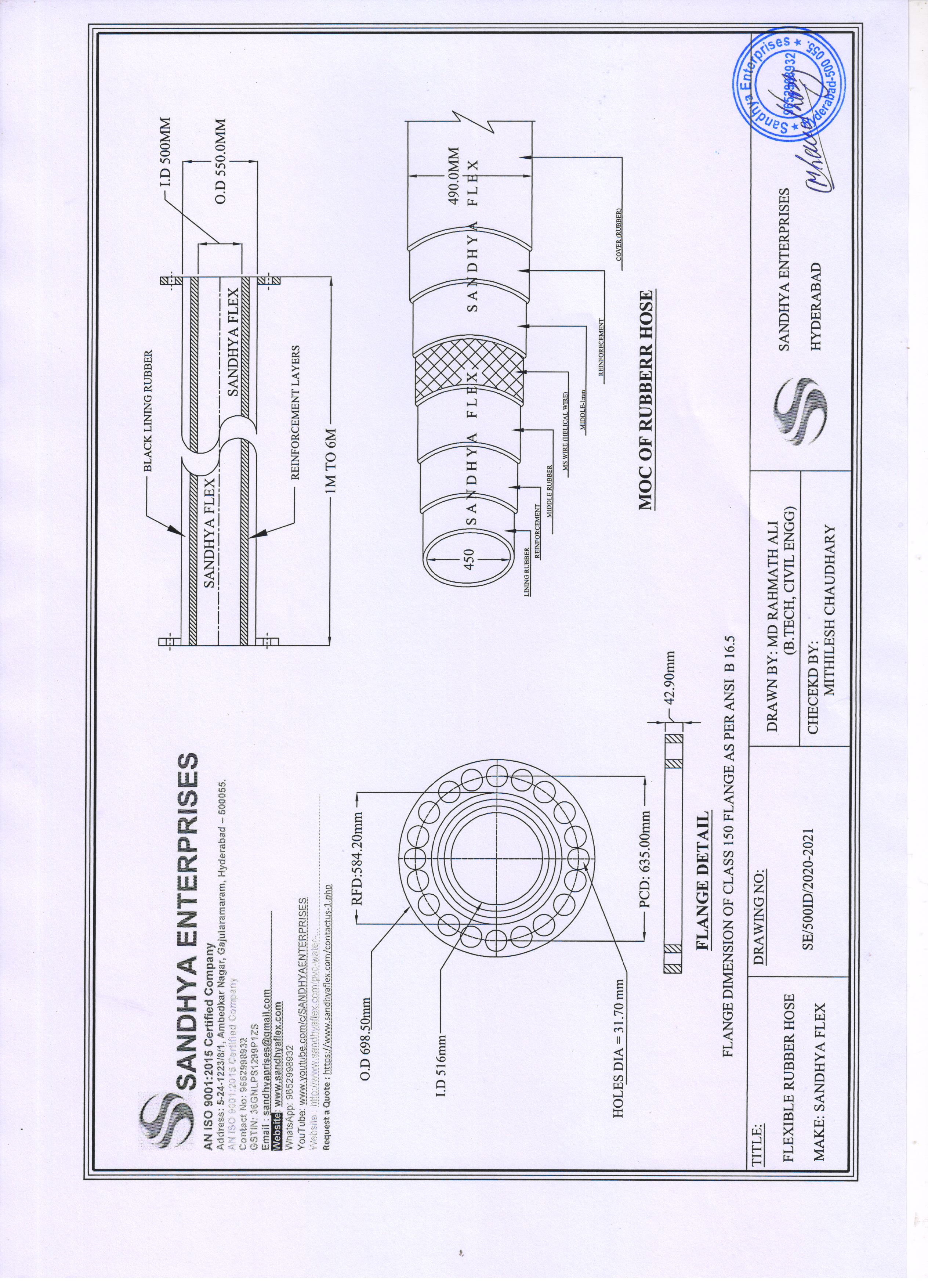

500mm ID Oil Suction Rubber Hose

500mm ID Oil Suction Rubber Hose

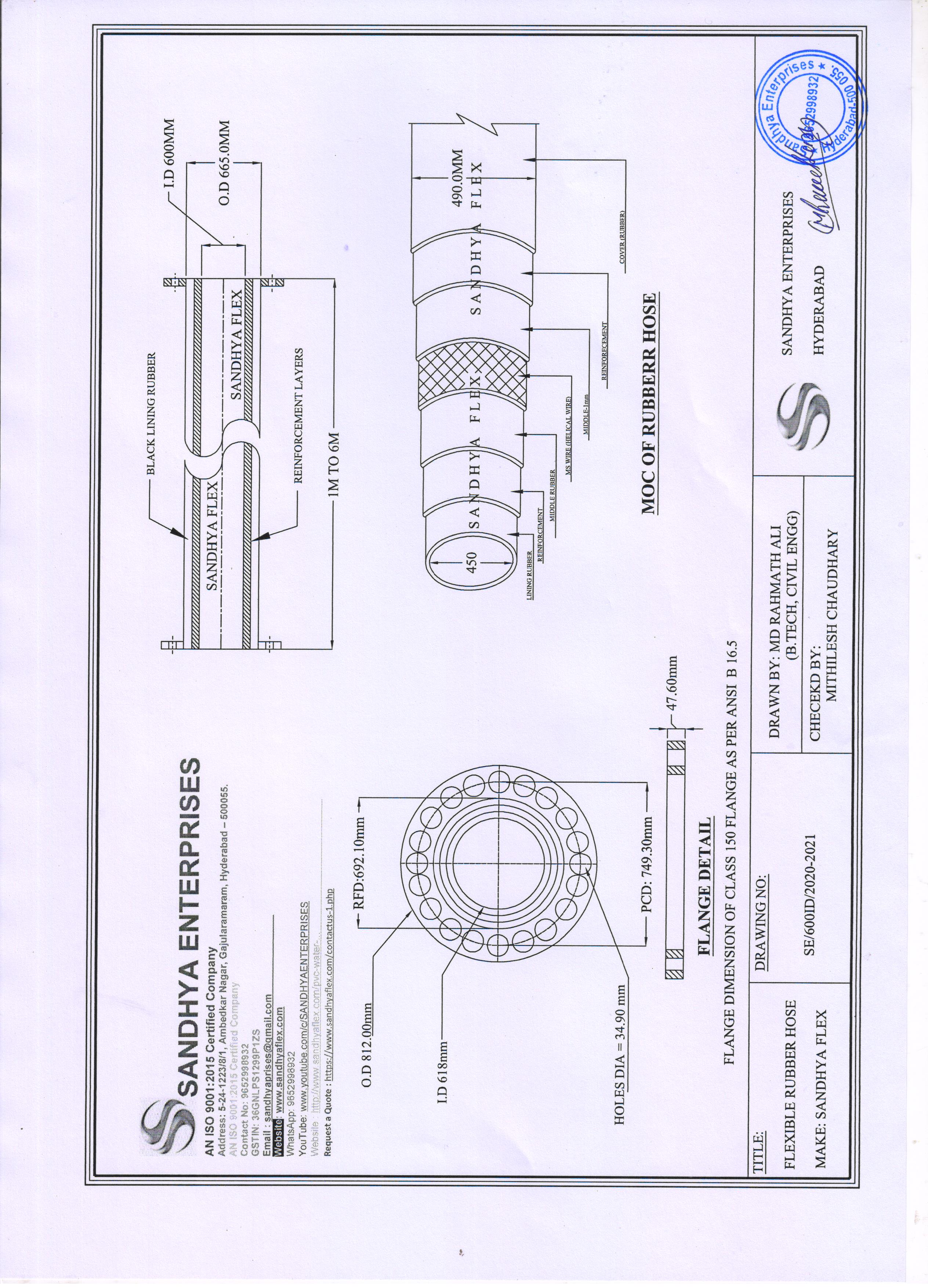

600mm ID Oil Suction Rubber Hose

600mm ID Oil Suction Rubber Hose
