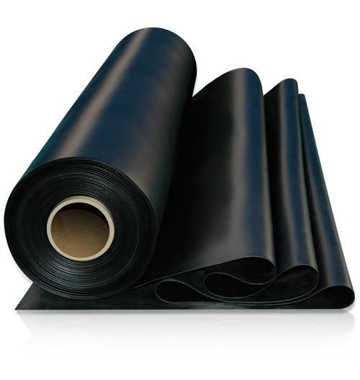

Natural Rubber Sheet       Download

Sandhya Enterprises AN ISO 9001 2015 certified Company Manufacturer , Supppier and Exporters of Natural Rubber Sheets or poly-isoprene rubber sheet is the most widely used rubber sheets for almost all general and as well as most dynamic applicationSandhya Enterprises AN ISO 9001 2015 certified Company Manufacturer , Supppier and Exporters of Natural Rubber Sheets or poly-isoprene rubber sheet is the most widely used rubber sheets for almost all general and as well as most dynamic application

In some arease, NR is compounded with SBR to increase the temperature resistance and Abrasion resistance of Natural rubber sheet.

Color : Black/ White/ Beige/any other color.

Main Properties : It offers excellent mechanical Properties like high resilience, low compression set. High resistance to cut. Tear and abrasion etc. NR also has excellent electrical properties.

Natural rubber sheets also offer resistance to many acids. Alkalis and salts.

Main Limitations : Bad resistance to oil and Organic Fluid.

Typical Applications : Normally this type of rubber sheets is used for very stretched range of application but it extensively benefits in the applications like- Chute Lining. Shooting /firing range application. Rubber lining in shot blasting room, Vibration resistance needs. Skirt board Sheet, Bridge Bearing Application etc. The NR rubber sheet is also used as food grade sheet if compounded especially.

Natural Rubber Sheet

OUR OFFERINGS

RUBBER SHEETTINGS
Natural/SBR Rubber Sheets (Wear Resistance/ Shot Blasting Rubber Sheets)
NBR RUBBER Sheets (Nitrile Rubber Sheets)
EPDM Rubber Sheets (Roofing Membrane)
Neoprene Rubber Sheets (Chloprene Rubber Sheets)
Silicon Rubber Sheets.
Insertion Rubber Jointing for Air and Water Pressure Rubber Sheets
Hypalon Rubber Sheets
Insulating Rubber Mats
Chequried Rubber MaRubber RuRubber





 Rubber Sheet
Sr No Description Size
1 Plain Rubber Sheet 1.5mm x 1 x 2 Mtr
2 Plain Rubber Sheet 2.mm x 1 x 2 Mtr
3 Plain Rubber Sheet 3mm x 1 x 2 Mtr
4 Plain Rubber Sheet 4mm x 1 x 2 Mtr
5 Plain Rubber Sheet 5mm x 1 x 2 Mtr
6 Plain Rubber Sheet 6mm x 1 x 2 Mtr
7 Plain Rubber Sheet 8mm x 1 x 2 Mtr
8 Plain Rubber Sheet 10mm x 1 x 2 Mtr
9 Plain Rubber Sheet 12mm x 1 x 2 Mtr
10 Plain Rubber Sheet 16mm x 1 x 2 Mtr
11 Plain Rubber Sheet 20mm x 1 x 2 Mtr
12 Plain Rubber Sheet 25mm x 1 x 2 Mtr
13 Plain Rubber Sheet 50mm x 1 x 2 Mtr
Plain Rubber Sheet Route Cure
Sr No Description Size
1 Plain Rubber Sheet 1.5mm x 1 x 10Mtr
2 Plain Rubber Sheet 2.0mm x 1 x 10 Mtr
3 Plain Rubber Sheet 3.0mm x 1 x 10 Mtr
4 Plain Rubber Sheet 4mm x 1 x 10 Mtr
5 Plain Rubber Sheet 5mm x 1 x 10 Mtr
6 Plain Rubber Sheet 6mm x 1 x 10 Mtr
7 Plain Rubber Sheet 8mm x 1 x 10 Mtr
8 Plain Rubber Sheet 10mm x 1 x 10 Mtr
9 Plain Rubber Sheet 12mm x 1 x 10 Mtr
10 Plain Rubber Sheet 16mm x 1 x 10 Mtr
11 Plain Rubber Sheet 20mm x 1 x 10 Mtr
12 Plain Rubber Sheet 25mm x 1 x 10 Mtr
Sr.No. Description Specified
1 Physical Properties Before Ageing
a Hardness Shore A 45 to 85 Shore A
b Tensile Strength 5 MPa to 17 MPa
c Elongation at Break 200 to 700%
2 Physical Proferties Agter Ageing at 700 C
a Change in Hardness -5/+8 IRHD
b Change in Tensile Strength +20%
c Change in Elongation at Break -30/+10%
3 Compression Set at 70oC for 24 hrs
a Compression Set 25% to 50%
Plain Rubber Sheet Route Cure
Sr No Description Size
1 Plain Rubber Sheet 1.5mm x 1.2 x 10Mtr
2 Plain Rubber Sheet 2.0mm x 1.2 x 10 Mtr
3 Plain Rubber Sheet 3.0mm x 1.2 x 10 Mtr
4 Plain Rubber Sheet 4mm x 1.2 x 10 Mtr
5 Plain Rubber Sheet 5mm x 1.2 x 10 Mtr
6 Plain Rubber Sheet 6mm x 1 .2x 10 Mtr
7 Plain Rubber Sheet 8mm x 1.2 x 10 Mtr
8 Plain Rubber Sheet 10mm x 1.2 x 10 Mtr
9 Plain Rubber Sheet 12mm x 1.2 x 10 Mtr
10 Plain Rubber Sheet 16mm x 1.2 x 10 Mtr
11 Plain Rubber Sheet 20mm x 1.2 x 10 Mtr
12 Plain Rubber Sheet 25mm x 1.2 x 10 Mtr
Common Name Chemical Name Nomenclature Hardness Range Low Temperature res Heat Resistance Tensile Strength Elongation Break %
Natural Rubber Poly Isoprene NR 30-90 Shore A -30 Deg C (max) 25 to105Deg C 5MPa to 17MPa 250 to 700
Specific Gravity Thickness Width Length Surface Insertion Packing Compression Set
1.05- 1.8 gm/cm3 0.5-6.0mm and 6-60mm 1.0 to 1.2Mtr 10Mtr Plain (Smooth) Fabric market/patterned Possible Nylon/Cotton/Polyester Rolls/Flats Max.50% for 22hrs at 70 Deg C
