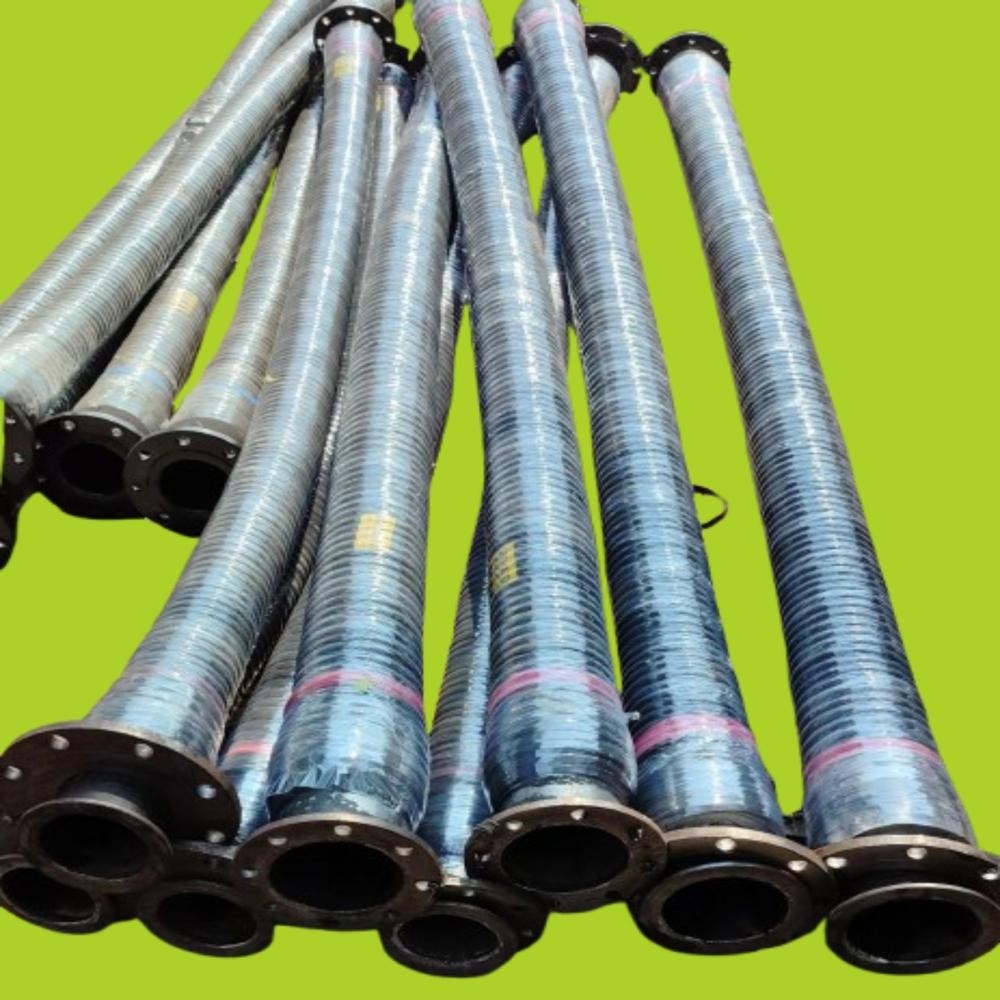

Fly Ash Rubber Hose

Fly Ash Rubber Hose:

Application: Fly Ash Rubber Hose,tank, truck, Bulker loading/unloading or in-plant transfer of dry bulk cement, sand, lime, slurry etc., suction or discharge of abrasive materials.

Construction:

Lining : Uniform seamless tube of natural and synthetic blend rubber compound with excellent resistance to abrasion.

Reinforcement : Reinforcement of rubber impregnated woven textile applied on bias at approx.45 degree angle combination with galvanized steel wire

Cover : Corrugated/plain cloth marked outer cover made from natural rubber compound with excellent weather and abrasion resistant.

End Connections : Each Hose Length has soft ends for clamping or can be supplied with different type of nipples, flanges or fittings as per requirement.

Cover: W.P. of 1.0 Mpa & Min. B.P. of 3.0Mpa.

W.P. of 1.5 Mpa & Min. B.P. of 4.5Mpa .



Internal O in Mm
Inches
Tolerance on Nom. Bore(mm) Min. Thickness (mm) Lining Filler Cover W.P. 10 Bar Proof Pressure Bursting Pressure W.P. 15 Bar Proof Pressure Bursting Pressure Length of soft end Max. Standard Length (M)
38.00 1.1/2 ±1.506.00 1.00 1.50 20 40 30 4580±5 20
50.00 2 ±1.50 6.00 1.00 1.50 20 40 30 45 80±5 20
63.00 2.1/2 ±1.506.00 1.00 1.50 20 40 30 45 80±5 15
75.00 3 ±2.00 6.00 1.00 1.50 20 V40 30 45 80±5 15
100.00 4 ±2.00 6.00 1.50 2.00 20 40 30 45 105±5 15
125.00 5 ±2.00 6.00 1.50 2.00 20 40 30 45 145±5 15
150.00 6 ±2.00 6.00 1.50 2.00 20 40 30 45 145±5 12
200.00 8 ±2.00 6.00 2.00 2.00 20 40 30 45 145±5 12
250.00 10 ±3.00 9.00 2.00 2.50 20 40 30 45 145±5 12
300.00 12 ±3.00 9.00 2.00 2.50 20 40 30 45 145±5 8
350.00 14 ±3.00 9.00 2.00 2.50 20 4030 45 145±5 8
W.P. :Working Pressure, P.P. : Proof Pressure, B.P. : Burst Pressure, 1MPa : 10.2Kgf/Cm2 1Kgf/Cm2 :100KN/m2 Length : Mandrel made hose upto 15 mtr.
