Cam Lock Fitting       Download

The Original Often Imitated Never Duplicated Available in a wide Range of Sizes. Materials. And Ratings to Meet Virtually Any Customer

Application

SANDHYA ENTERPRISES is the Industry Leader Others have attempted to Duplicate but is Unparalleled in Selection. Capability and Depend. Ability, in Addition to Being the Most Recognized Brand of Hub on the Market. Myers offers larger Aluminum Hubs. Atex Approved Hubs. Cap-offs Drans and More!

Cam Lock Couplings.

Cam lock Couplings are Manufactured in Compliance with Mil-C-27487 (a-a-59326) Specification. Their Construction. Their Construction, as well as Operation, Is very simple . The Coupling is connected just by opening the coupler Arms and inserting the Adapter into the Coupler. The Cam Arms are then closed under Normal/ Hand Pressure to complete Joint. The Standard Coupling is Supplied with a Nitrile/ Silicon Rubber Seal That is Placed in the Groove of a Coupler. The Couplings are made of Aluminium, Brass (Bronze). Aisi 316 Stainless Steel. Polypropylene Reinforced with Bre Glass. Handles are made of AISI 304 Stainless Steel as a Standard for All Couplings Made of Brass. Stainless Steel. Polypropylene and for Aluminium couplings in sizes ½”,3/4”,1”,5” and 6”. The Couplings made of Aluminium in sizes ranging from 1.1/4” to 4” have Brass Handles as a standard.

Polypropylene Couplins in size ½” have Coupler and ¾” Adapter, However. Coupler and Adapter are also available).

Crs and Ers Couplings in size 1.1/2” Are Available as a Version for Hoses with Either 38mm or 40mm inside Diameter.

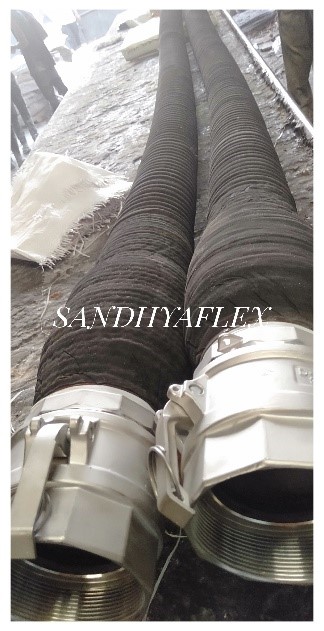

Cap Lock Coupling

Cap Lock Coupling

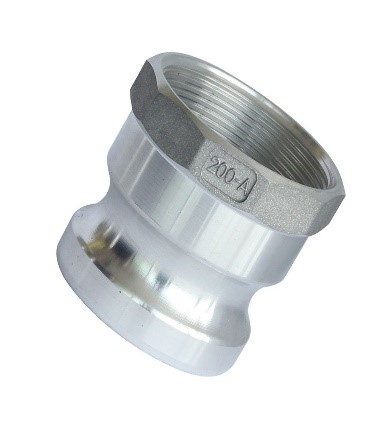

Type A Cap Lock

Type A Cap Lock

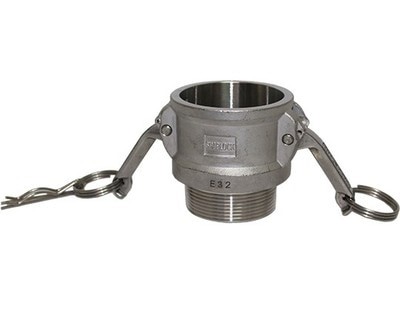

Type B Cap Lock

Type B Cap Lock

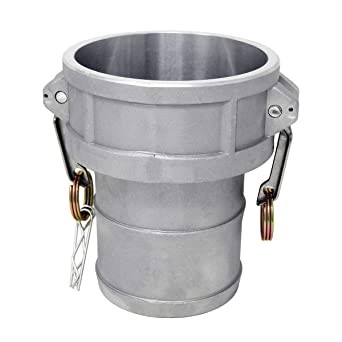

Type C Cap Lock

Type C Cap Lock

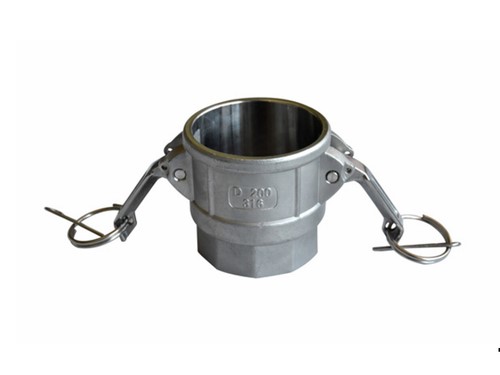

Type D Cap Lock

Type D Cap Lock

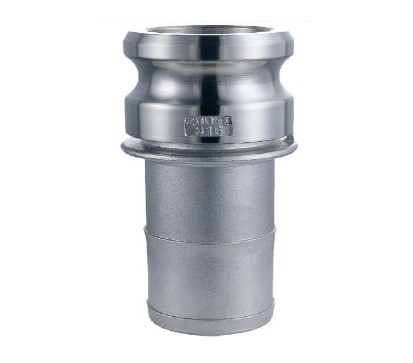

Type E Cap Lock

Type E Cap Lock

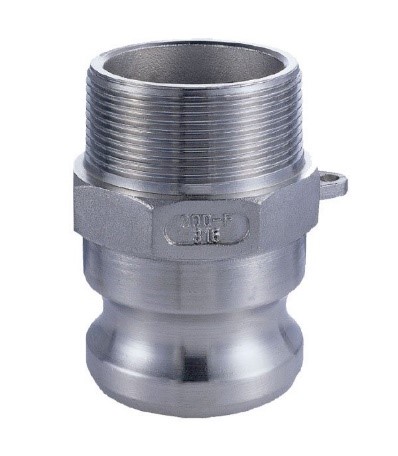

Type F Cap Lock

Type F Cap Lock

Type DC Cap Lock

Type DC Cap Lock

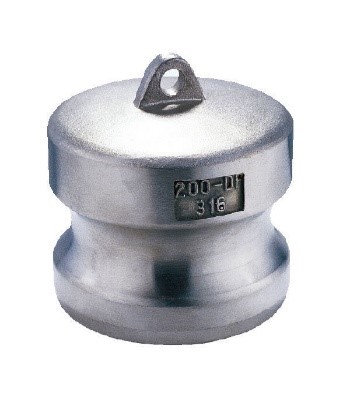

Type DP Cap Lock

Type DP Cap Lock
Cam Lock Coupling Details
Working Pressure Chart (Bar)
Material size ½” ¾” 2” 21/2” 3” 4” 5” 6”
  12.7mm 19.05mm 50.8mm 63mm 76.2mm 101.6mm 127.0mm 152.4
Brass 9 10 10 10 10 10 5 5
Aluminium 9 10 10 10 10 10 5 5
AISI 16L 10 10 10 10 10 10 5 5

Sandhya Enterprises Supplies two types of CAM LOCK Couplings

*SNAP LOCK: Manufactured by Action Seal tight, Heavy Duty Type.

Designed for essential industrial connections.

ECONOMY:- Economical Version of CAM LOCK tings for general Industrial application. This version comes with reduced wall thickness, economical Nish, and with reduced mechanical resistance. Yet it meets all pressure requirements.

Cam Lock Coupling Details
Temperature Range of Seal material
Temperature NBR EPDM Viton Neoprene PTFE/NBR PTFE/Vito FEP/Silicone
Minimum -400C -300C -400C -500C -400C -400C -600C
Maximum +930C +1500C +2000C +1070C +930C +2000C +20500C
Cam Lock Couplings Specifications.
Type A Cam Lock-Male Cam Lock/Female BSP
Dimensions Inch ½” ¾” 1” 11/4” 11/2” 2” 21/2” 3” 4”
Millimetres 15 20 25 32 40 50 65 80 100
A 21 21 26 36 36 50 56.5 75 109.2
B 38 38 45 56 60 61 87 66.5 72
C 32 32 38 48 56 63 83 91 119.5
Type A Cam Lock-Male Cam Lock/Female BSP
Dimensions Inch ½” ¾” 1” 11/4” 11/2” 2” 21/2” 3” 4”
Millimetres 15 20 25 32 40 50 65 80 100
A 14 14 24 28 35 51 58 72 98
B 52 52 64 72 73 80 90 94 101
E 32 32 40 48 49 54 59 60 62
G 53 53 60 78 85 96 110 127 156
Type C Cam Lock-Female Cam Lock/Male Hose Bar
Dimensions Inch ½” ¾” 1” 11/4” 11/2” 2” 21/2” 3” 4”
Millimetres 15 20 25 32 40 50 65 80 100
A 14 14 94 25 31 43 55 67 92
B 92 92 31 118 121 138 155 164 175
D 20 20 31 33 39 52 65 77 103
E 32 32 36 48 49 54 59 60 62
G 53 53 60 78 85 96 110 127 156
Type D Cam Lock-Female Cam Lock/Female BSP
Dimensions Inch ½” ¾” 1” 11/4” 11/2” 2” 21/2” 3” 4”
Millimetres 15 20 25 32 40 50 65 80 100
A 16 19 26 30 39 50 58 72 98
B 52 52 62 68 71 78 85 91 96
C 32 32 40 48 56 67 83 96 127
E 32 32 40 48 49 54 59 60 62
G 53 53 60 78 85 96 110 127 156
Type E Cam Lock-Male Cam Lock/Male Hose Bar
Dimensions Inch ½” ¾” 1” 11/4” 11/2” 2” 21/2” 3” 4”
Millimetres 15 20 25 32 40 50 65 80 100
A 14 19 28 28 35 48 72 72 98
B 98 98 110 121 125 140 170 170 182
D 20 20 33 33 39 52 77 77 103
E 40 40 53 53 56 61 66 66 70
C 34 34 48 56 56 66 102 102 132
Type D Cam Lock-Female Cam Lock/Female BSP
Dimensions Inch ½” ¾” 1” 11/4” 11/2” 2” 21/2” 3” 4”
Millimetres 15 20 25 32 40 50 65 80 100
A 21 21 24 28.5 36 45 56.5 73 98
B 56 56 72 80 84 88 100 106 114
C 32 32 40 48 56 67 83 96 127
E 39 39 48 56 61 62 69 74 79
Type DC Cam Lock-Dust Cap
Dimensions Inch ½” ¾” 1” 11/4” 11/2” 2” 21/2” 3” 4”
Millimetres 15 20 25 32 40 50 65 80 100
B 45 45 54 65 69 80 84 85 94
E 32 35 40 48 49 54 59 60 62
G 53 53 60 78 85 96 110 127 156
Type DP Cam Lock-Dust Plug
Dimensions Inch ½” ¾” 1” 11/4” 11/2” 2” 21/2” 3” 4”
Millimetres 15 20 25 32 40 50 65 80 100
A 21 21 24 29 36 45 57 73 98
B 37 37 44 55 64 68 70 80 80
E 24 24 30 38 41 43 45 52 48
CAMLOCK PRICE LIST (SS340)
TYPE
Size A B C D E F DP DC
1/2” 65     175
¾” 70   155 175   135
1” 125 265 235 220 150 145
11/4” 145   290 270 215 225
11/2” 190 360 320 360 255 240 170 290
2” 240 475 420 430 425 350 255 340
21/2” 406     625
3” 550   940 740 875 750 565 690
4” 695   1140 1175 1075

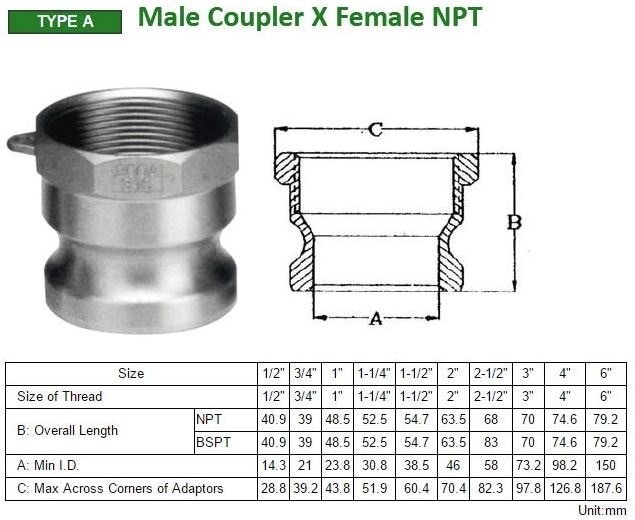

Type A Male Coupler x Female NPT

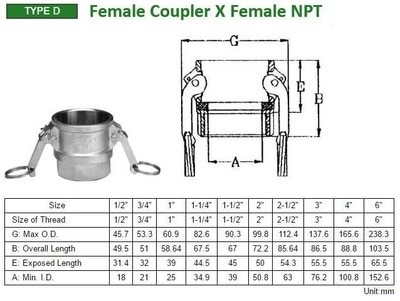

Type D Female Coupler x Female NPT
