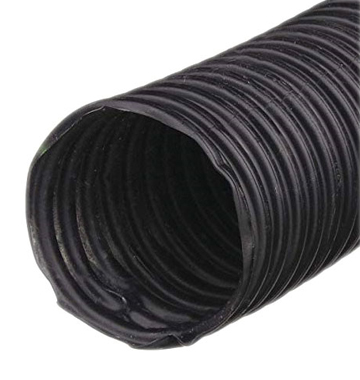

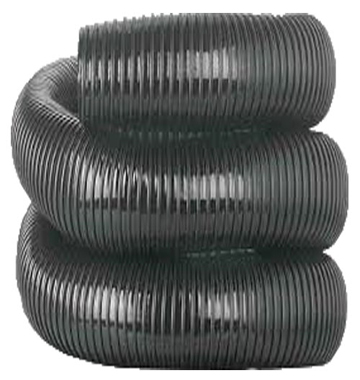

Dust and Air Rubber Suction Hose :
Tube : Natural and Synthetic Rubber.
Reinforcement : Synthetic Textile and Steel Helix Wire.
Cover : Abrasion. Ozone, Weather and Heat Resistant Synthetic Rubber Corrugated.
Application : For Suction and Delivery of Air Dust Grain Powder Etc.
| ID in Inch | ID in mm | OD in mm | Vaccum in Bar | BR/r in mm | W in g/m |
| 1” | 25.4 | 32 | 0.60 | 40 | 417 |
| 1 ¼” | 32 | 39 | 0.60 | 60 | 617 |
| 1 ½” | 38 | 45 | 0.60 | 75 | 721 |
| 1 ¾” | 44.5 | 52 | 0.60 | 90 | 806 |
| 2” | 50.8 | 58 | 0.60 | 100 | 912 |
| 2.1/2” | 63.5 | 72 | 0.60 | 125 | 1407 |
| 3” | 76.2 | 84.5 | 0.60 | 150 | 1694 |
| 4” | 101.6 | 110 | 0.60 | 200 | 2336 |
| 5” | 127 | 135 | 0.60 | 295 | 3176 |
| 6” | 152.4 | 162 | 0.60 | 380 | 4171 |
| 8” | 203.2 | 214 | 0.60 | 700 | 6282 |
| 10” | 254 | 267 | 0.60 | 1000 | 8795 |
| 12” | 305 | 319 | 0.60 | 1400 | 10430 |
25.4mm ID x 32mm OD x 6.0.0Mtr (L) Flexible Vacuum Rubber Hose
| 25.40 | Sl.No. | Description | Thickness |
| 27.80 | 1 | Lining | 1.20 |
| 29.00 | 2 | 1 Ply 18 OZ (4") | 0.60 |
| 0.00 | 3 | SS Wire 16 SWG | 2.60 |
| 30.20 | 5 | 1Ply 18 OZ (5") | 0.60 |
| 35.00 | 6 | Cover | 1.20 |
32.0mm ID x 39.0mm OD x 6.0.0Mtr (L) Flexible Vacuum Rubber Hose
| 32.00 | Sl.No. | Description | Thickness |
| 34.50 | 1 | Lining | 1.25 |
| 35.70 | 2 | 1 Ply 18 OZ (8") | 0.60 |
| 0.00 | 3 | SS Wire 12 SWG | 2.60 |
| 36.90 | 5 | 1Ply 18 OZ (9") | 0.60 |
| 41.90 | 6 | Cover | 1.25 |
38.0mm ID x 45.0mm OD x 6.0.0Mtr (L) Flexible Vaccum Rubber Hose
| 38.00 | Sl.No. | Description | Thickness |
| 40.50 | 1 | Lining | 1.25 |
| 41.70 | 2 | 1 Ply 18 OZ (8") | 0.60 |
| 0.00 | 3 | SS Wire 12 SWG | 2.60 |
| 42.90 | 5 | 1Ply 18 OZ (9") | 0.60 |
| 47.90 | 6 | Cover | 1.25 |
44.5mm ID x 52.0mm OD x 6.0.0Mtr (L) Flexible Vaccum Rubber Hose
| 44.50 | Sl.No. | Description | Thickness |
| 47.00 | 1 | Lining | 1.25 |
| 48.20 | 2 | 1 Ply 18 OZ (8") | 0.60 |
| 0.00 | 3 | SS Wire 12 SWG | 2.60 |
| 48.32 | 5 | 1Ply 18 OZ (9") | 0.06 |
| 53.32 | 6 | Cover | 1.25 |
50.8mm ID x58.0mm OD x 6.0.0Mtr (L) Flexible Vaccum Rubber Hose
| 50.80 | Sl.No. | Description | Thickness |
| 53.30 | 1 | Lining | 1.25 |
| 54.50 | 2 | 1 Ply 18 OZ (8") | 0.60 |
| 0.00 | 3 | SS Wire 12 SWG | 2.60 |
| 54.62 | 5 | 1Ply 18 OZ (9") | 0.06 |
| 59.62 | 6 | Cover | 1.25 |
63.5mm ID x 72.0mm OD x 6.0.0Mtr (L) Flexible Vaccum Rubber Hose
| 63.50 | Sl.No. | Description | Thickness |
| 66.00 | 1 | Lining | 1.25 |
| 67.20 | 2 | 1 Ply 18 OZ (8") | 0.60 |
| 0.00 | 3 | SS Wire 12 SWG | 2.60 |
| 67.32 | 5 | 1Ply 18 OZ (9") | 0.06 |
| 72.32 | 6 | Cover | 1.25 |
76.2mm ID x 84.5mm OD x 6.0.0Mtr (L) Flexible Vaccum Rubber Hose
| 76.20 | Sl.No. | Description | Thickness |
| 78.70 | 1 | Lining | 1.25 |
| 79.90 | 2 | 1 Ply 18 OZ (8") | 0.60 |
| 0.00 | 3 | SS Wire 12 SWG | 2.60 |
| 80.02 | 5 | 1Ply 18 OZ (9") | 0.06 |
| 85.02 | 6 | Cover | 1.25 |
101.6mm ID x 110.0mm OD x 6.0.0Mtr (L) Flexible Vacuum Rubber Hose
| 101.60 | Sl.No. | Description | Thickness |
| 104.30 | 1 | Lining | 1.35 |
| 105.50 | 2 | 1 Ply 18 OZ (8") | 0.60 |
| 0.00 | 3 | SS Wire 12 SWG | 2.60 |
| 105.62 | 5 | 1Ply 18 OZ (9") | 0.06 |
| 111.02 | 6 | Cover | 1.35 |
127.0mm ID x 135.0mm OD x 6.0.0Mtr (L) Flexible Vacuum Rubber Hose
| 127.00 | Sl.No. | Description | Thickness |
| 129.70 | 1 | Lining | 1.35 |
| 130.90 | 2 | 1 Ply 18 OZ (8") | 0.60 |
| 0.00 | 3 | SS Wire 12 SWG | 2.60 |
| 131.02 | 5 | 1Ply 18 OZ (9") | 0.06 |
| 136.42 | 6 | Cover | 1.35 |
152.4mm ID x 162.0mm OD x 6.0.0Mtr (L) Flexible Vaccum Rubber Hose
| 152.40 | Sl.No. | Description | Thickness |
| 155.40 | 1 | Lining | 1.50 |
| 156.60 | 2 | 1 Ply 18 OZ (8") | 0.60 |
| 0.00 | 3 | SS Wire 12 SWG | 2.60 |
| 156.72 | 5 | 1Ply 18 OZ (9") | 0.06 |
| 162.72 | 6 | Cover | 1.50 |
203.2mm ID x 214.0mm OD x 6.0.0Mtr (L) Flexible Vacuum Rubber Hose
| 203.20 | Sl.No. | Description | Thickness |
| 206.20 | 1 | Lining | 1.50 |
| 207.80 | 2 | 1 Ply 18 OZ (8") | 0.80 |
| 0.00 | 3 | SS Wire 12 SWG | 2.60 |
| 209.40 | 5 | 1Ply 18 OZ (9") | 0.80 |
| 215.40 | 6 | Cover | 1.50 |
254.0mm ID x 267.0mm OD x 6.0.0Mtr (L) Flexible Vaccum Rubber Hose
| 254.00 | Sl.No. | Description | Thickness |
| 257.00 | 1 | Lining | 1.50 |
| 260.20 | 2 | 1 Ply 18 OZ (8"+") | 0.80 |
| 0.00 | 3 | SS Wire 12 SWG | 2.60 |
| 263.40 | 5 | 1Ply 18 OZ (9"+8"") | 0.80 |
| 269.40 | 6 | Cover | 1.50 |
305.0mm ID x 319.0mm OD x 6.0.0Mtr (L) Flexible Vacuum Rubber Hose
| 305.00 | Sl.No. | Description | Thickness |
| 308.00 | 1 | Lining | 1.50 |
| 311.20 | 2 | 1 Ply 18 OZ (8"+8") | 0.80 |
| 0.00 | 3 | SS Wire 12 SWG | 2.60 |
| 314.40 | 5 | 1Ply 18 OZ (9"+9"") | 0.80 |
| 320.40 | 6 | Cover | 1.50 |

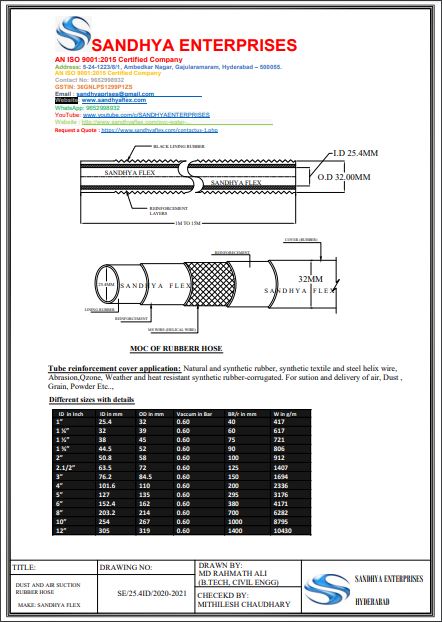

Dust and Air Rubber Suction Hose - Diagrams
