    Technical Data of PVC Water Stopper

    What is a PVC Water Stopper?

    PVC Water Stopper is a flexible sealing strip used to create a watertight barrier at concrete construction and expansion joints. Manufactured by Sandhyaflex India Pvt Ltd, our PVC water stoppers are ISO 9001:2015 certified and tested to IS:15058-2002 standards, and are widely used in basements, water tanks, dams, tunnels, and below-ground structures where water infiltration is a risk.

    • Basements: Prevent water seepage and leaks that can damage foundations and create moisture issues.
    • Water-Retaining Structures: Ensure water stays contained in reservoirs, swimming pools, and water treatment tanks.
    • Structural Foundations: Protect against water infiltration that can weaken the foundation's stability.
    • Below-Ground Constructions: Safeguard underground structures like parking garages and tunnels from water damage.

    Sandhyaflex — PVC Water Stopper Manufacturer in India

    • Unmatched Quality: We prioritize premium materials and strict adherence to industry standards (ISO 9001:2015 Certified) to deliver exceptional PVC water stoppers.
    • Durable Performance: Our water stoppers are crafted with a special anti-aging compound, ensuring long-lasting resilience even in harsh environments.
    • Superior Functionality: The unique central bulb design creates an extended path length, effectively diverting water and preventing it from bypassing the seal."

    Advantageous Properties: Sandhyaflex India Pvt Ltd' PVC Water Stoppers boast:

    • High elasticity and tensile strength for enduring flexibility
    • Excellent weather resistance for reliable performance outdoors
    • Corrosion immunity for long-lasting protection

    Beyond PVC Water Stoppers

    In addition to their top-of-the-line PVC Water Stoppers, Sandhyaflex India Pvt Ltd offers a comprehensive range of construction essentials, including:

    • Elastomeric Bridge Bearings
    • Strip Seal Expansion Joints
    • Rubber Products

    They meticulously manufacture these products to comply with IS, BS, RDSO, and MoRTH specifications, guaranteeing their suitability for various construction projects.

    For builders and contractors seeking dependable water sealing solutions and high-quality construction materials, SANDHYAFLEX INDIA PVT LTD is the ideal partner. Their commitment to excellence and comprehensive product portfolio make them a one-stop shop for all your construction needs.

    PVC Water Stopper with Center Bulb

    • 150 (6") x 4mm
    • 150 (6") x 5mm
    • 150 (6") x 6mm
    • 150 (6") x 8mm
    • 150 (6") x 10mm
    • 200 (8") x 8mm
    • 200 (8") x 10mm
    • 225 (9") x 5mm
    • 225 (9") x 6mm
    • 225 (9") x 8mm
    • 225 (9") x 10mm
    • 240 x 8mm
    • 240 x 10mm
    • 250 (10") x 8mm
    • 250 (10") x 10mm
    • 250 (10") x 12mm
    • 300 (12") x 6mm
    • 300 (12") x 8mm
    • 300 (12") x 10mm
    • 300 (12") x 12mm
    • 300 (12") x 15mm

    PRE TEST REPORT

    Name of the Consignee

    Address

    Purchase order & Date

    Description

    Rubber Seal Size & Quantity

    Testing Standard

    ....

    Report No: SF/KMPL/2022-23/WS/051

    Date: 05-11-2022

    PVC Water Stopper

    230mmx 6mm

    Is:15058-2002 Specification.

    S.No Tests IS:15058-2002 Specification
    Clause Number    		 Permissible Limits as per
    IS:15058-2002 Specification    		 Method of Test,
    Refer to    		 Results
    1. Physical Properties - Before Ageing
    Hardness Test Cl.3.2 (Sl.no.iii) 65 Shore A (min) IS: 13360 (Part 5/Sec II) 68 Shore A
    Tensile Strength Cl.3.2 (Sl.no.i) 13.8 MPa (Min) IS: 8543 (Part 4/sec I) 15.70MPa
    Elongation at Break Cl.3.2 285% (Min) IS: 8543 (Part 4/sec I) 300%
    2. Stability in effects of alkalies Test For 7 Days
    Weight Increase IS: 15058:2002 Annex C 0.25 %(Max) IS : 15058:2002 Annex C 0.20%
    Weight Decrease 0.10 % (Max) 0.09%
    Change In Hardness ±5(Max) IS: 15058:2002 Annex C/
    IS: 13360 (part 5/sec II)    		 -2
    3 Stability In effects of alkalies Test For 28 days
    Weight Increase IS: 15058:2002 Annex C 0.40 %(Max) IS : 15058:2002 Annex C 0.20%
    Weight Decrease 0.30 % (Max) 0.10%
    Change In Dimension ± 1%(Max) -1%
    4 Water absorption @ Room Temperature for 24 Hours IS: 15058:2002 Annex A +0.6%(Max) IS : 15058:2002 Annex A +0.52%
    5 Cold bent Temparature @ -25ºC IS:9766 Annex G Shoub be no Crack IS: 9766 -28.6ºC
    6 Accelerated Extraction Test @ 60-66º Temparature For 14 Days
    Tensile Strength IS: 15058:2002 Annex B 10.30 Mpa (Min) IS: 15058:2002 Annex B/ IS: 8543 (Part 4/sec I) 10.5 Mpa
    Elongation at Break 280% (Min) 283%
    7 Dimensions
    Width 4.1.1 230 ± 10 mm IS: 15058:2002 Annex B/ IS: 8543 (Part 4/sec I) 230-235mm
    Thickness 4.1.1 6.0 + 2/-0 mm 6.0-6.2mm

    The above tests are carried out on specially moulded test pieces as per IS:15058-2002 Specification specification and found satisfactory.

    Export Packing

    Dimension in CBM

    PVC Water Stopper with Center Bulb

    Each Roll 25Mtr

    SR No Dimension Length Width Height CBM Weight kg/Roll
    1 150x5mm 0.625 0.625 0.150 0.059 40
    2 150x6mm 0.625 0.625 0.150 0.059 45
    3 150x8mm 0.625 0.625 0.150 0.059 55
    4 200x8mm 0.625 0.625 0.200 0.059 70
    5 200x10mm 0.65 0.65 0.200 0.078 80
    6 225x5mm 0.625 0.625 0.23 0.090 65
    7 225x6mm 0.625 0.625 0.230 0.090 70
    8 225x8mm 0.65 0.65 0.230 0.097 90
    9 225x10mm 0.65 0.65 0.230 0.097 100
    10 240x8mm 0.65 0.650 0.240 0.104 110
    11 240x10mm 0.650 0.650 0.240 0.104 125
    12 250x8mm 0.675 0.675 0.250 0.114 95
    13 250x10mm 0.675 0.675 0.250 0.114 115
    14 300x6mm 0.700 0.700 0.300 0.147 95
    15 300x8mm 0.725 0.725 0.300 0.158 115
    16 300x10mm 0.750 0.750 0.300 0.169 145
    17 300x12mm 0.775 0.775 0.300 0.18 140
    18 300x15mm 0.800 0.800 0.300 0.192 160
    Kiker Type
    19 230x4mm 0.625 0.625 0.230 0.090 67
    Dumbbell Type
    20 230x8mm 0.650 0.650 0.230 0.097 87
    21 230x10mm 0.650 0.650 0.230 0.097 100

    PVC Water Stopper — Frequently Asked Questions

    A PVC Water Stopper is a flexible sealing strip used to create a watertight barrier at concrete construction and expansion joints, preventing water seepage in structures like basements, water tanks, and tunnels.
    Sizes range from 150mm to 300mm width, with thicknesses from 4mm to 15mm, depending on the joint width and application.
    Center bulb type water stoppers have a circular bulb at the center to accommodate joint movement, making them suitable for expansion joints. Dumbbell type water stoppers have a straighter profile without a center bulb and are typically used for construction joints with less movement.
    PVC Water Stoppers manufactured in India are tested and certified to IS:15058-2002, which specifies requirements for hardness, tensile strength, elongation, and water absorption.
    Yes, PVC Water Stoppers are widely used in water tanks, basements, reservoirs, and other water-retaining or below-ground structures to prevent water infiltration at joints.
    Sandhyaflex India Pvt Ltd manufactures and supplies PVC Water Stoppers directly from Hyderabad, Telangana, with pan-India delivery and export packing available. Contact us for local pricing and dispatch timelines.
    Pricing depends on size, thickness, and order quantity. Contact us for a bulk quote.

    PVC Water Stopper - Diagrams

    150X4 MM PVC Water Stopper

    150X4 MM PVC Water Stopper

    Dumble Type PVC Water Stopper

    Dumble Type PVC Water Stopper

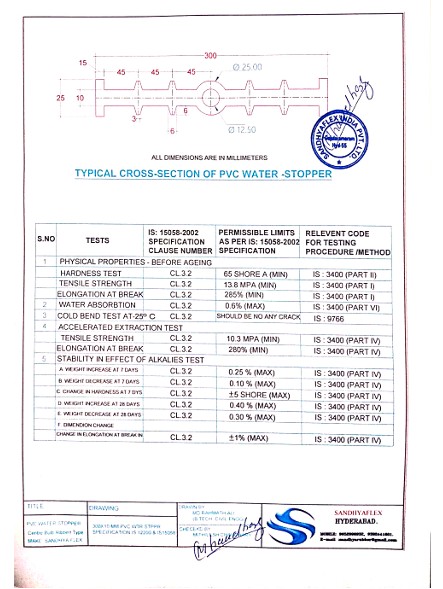

    PVC Water Stopper 300×10mm

    PVC Water Stopper 300×10mm
